意大利PIUSI代理商-蘇州知非機電設備有限公司自1953年以來，PIUSI是全球流體處理，擁有完整的流體輸送和管理產品系列：為農業、汽車工業、車間和車庫、車隊的私營運營商提供意大利質量和工程服務管理、公路和海上運輸。意大利PIUSI泵、流量計、點膠儀器和配件在世界各地應用。PIUSI為世界提供高質量、專業且易于使用的產品和完整的解決方案，用于傳輸、加注和測量潤滑油、燃料和液體，例如汽油、柴油、柴油機尾氣處理液 (DEF)、AdBlue、油、水和油脂。PIUSI產品有許多不同的用途，例如在卡車運輸公司監控和傳輸燃料、為農用車輛加油、在建筑和采礦中為重型車輛傳輸燃料。產品直觀易用；適合安裝在各種環境中；全部在意大利制造；所有產品都表達了PIUSI一直以來的創新、品質、專業和研發。1953 年，F(xiàn)ranco Varini 創立了 OMAA（意大利農業應用機械車間的縮寫）：PIUSI 誕生了。從那時起，與其名稱嚴格相關——PIUSI: MANY-USES (più-usi) ——該公司已將其專業知識和工程能力應用于不同的流體，開發了其泵制造業務；從燃料到潤滑油，除了泵，PIUSI開始生產一些相關產品，如流量計和噴嘴。這家全球參與者開始加強其林導地位。在 90 年代，設計了許多標志性的 PIUSI 產品：CUBE 分配器、K500 預設噴嘴計量器、用于油的 EASY OIL 噴嘴和油脂噴嘴計量器 GREASTER。產品包括：泵、分配器、流量計、噴嘴、過濾器、脈沖發生器、電子儀表、連接器、軟管和旋轉接頭等，用于農業、車庫設備、工業、物流、采礦和建筑、海jun等領域。PIUSI K200產品是一款適用于潤滑油監測的電子流量計。作為電子流量計的 K200 在顯示屏上顯示部分總計 5 位數字 (h=11.5 mm)，浮點數從 0.001 到 999.99 總計，不可重置為從 1 到 99999999 的 8 位數字 (h=5 mm)。高度K200 數字流量計的設計旨在確保精確測量分配的數量。K200油流量計配備乙縮醛樹脂橢圓齒輪，可以監測低、中、高粘度流體的分配流量，例如燃料、潤滑油和其他與建筑材料兼容的特殊流體，用于非商業分配。長期可靠K200 由一個帶有鋁制測量室的主體組成，可隨著時間的推移實現大的可靠性。脈沖發生器類型是簧片開關，單通道可更好地追蹤分配的數量，大流量為 2.8 l/min，計量精度為 +/- 0.5%。這些功能也包含在 K200 油流量計中：重復性 0.2%。大壓降0.5 bar 流速。

Product code Description Parts Manuals

F0068700D K500 PRESET NOZZLE ?" BSP W/ROT SPOUT

F0068721A K500 PRESET NOZZLE ?" BSP W/FLEX SPOUT

000934000 RIGID SPOUT W/MAN ANTI-DRIP VALVE HF

000938000 RIGID SPOUT W/MAN ANTI-DRIP VALVE LF

F00665000 RIGID SPOUT W/AUTO ANTI-DRIP VALVE HP

F0067000A RIGID SPOUT W/AUTO ANTI-DRIP VALVE LP

F0067002A RIGID SPOUT SHORT B/P

F00670030 RIGID STRAIGHT SPOUT B/P !§

F00676080 RIGID SPOUT + VALVE B/P K500 NEW

F1251900A GROUP SPOUT K500

F1315300B GROUP SPOUT + VALVE MNDV B/P

F1600501A RIGID SPOUT PISTOL-ONE

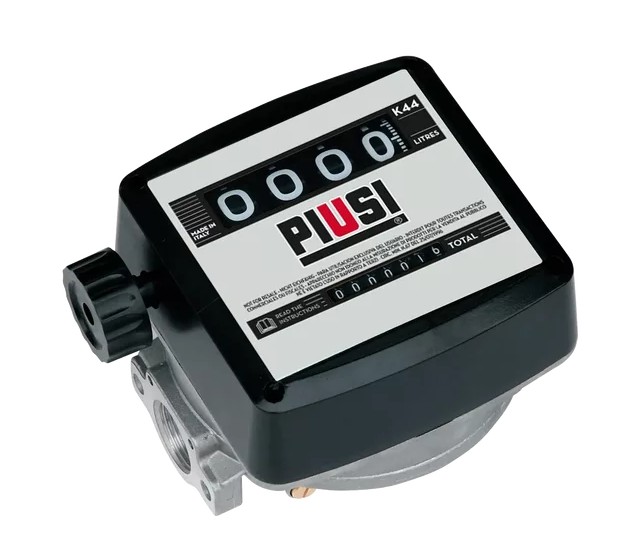

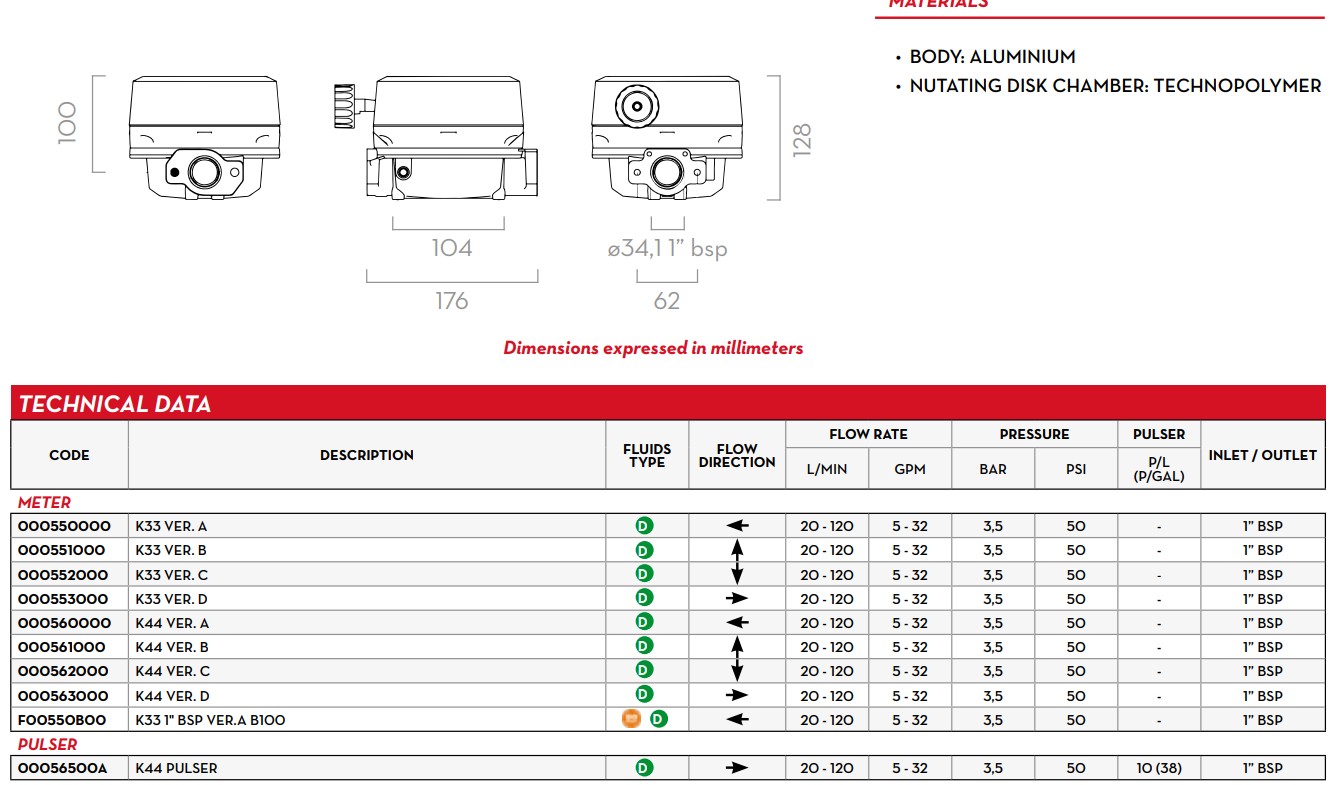

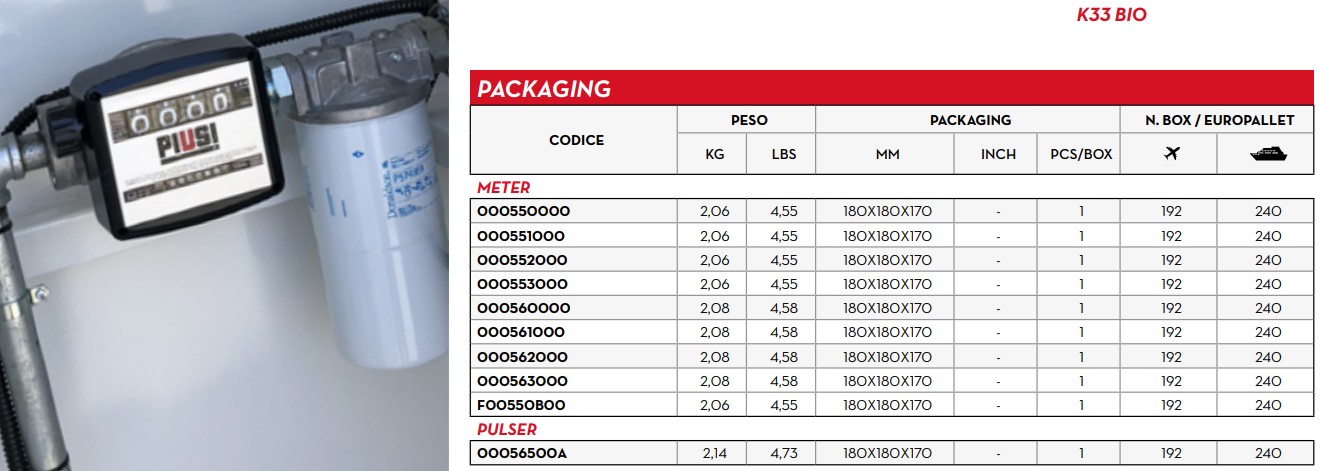

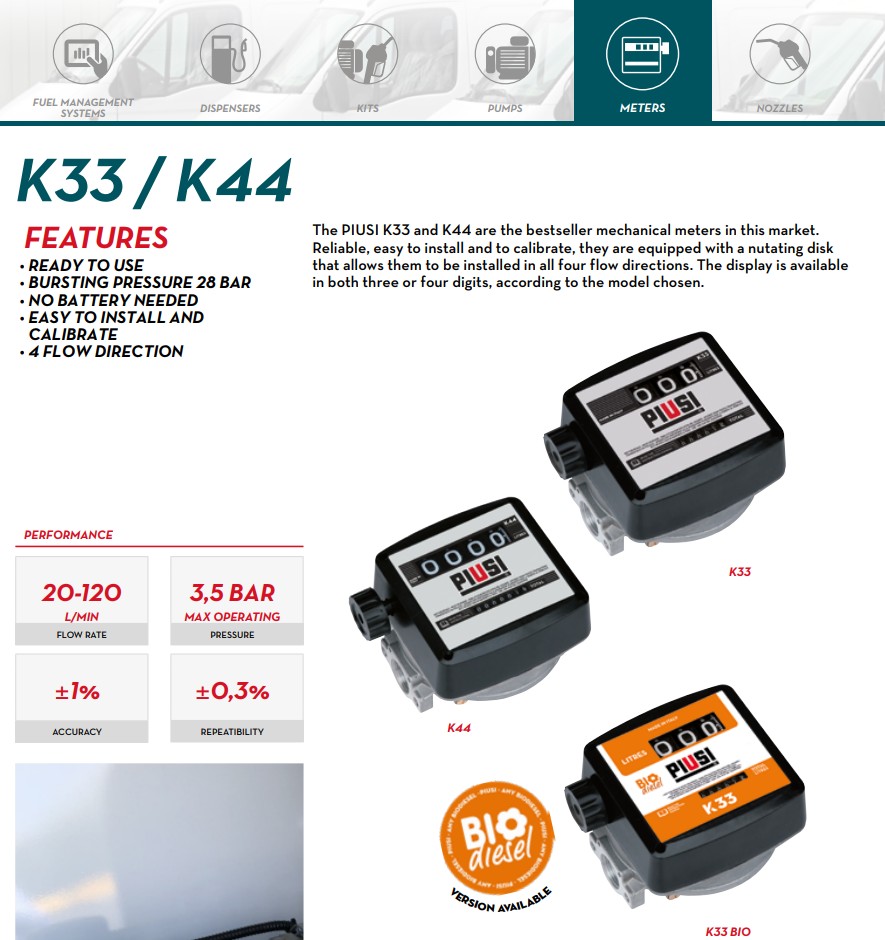

K33 and K44 for Fuel

The PIUSI K33 and K44 are mechanical flow meters suitable for the monitoring of diesel. PIUSI K33 as a mechanical flow meter has a partial indicator with 3 digits (max. 999 litres), total 6 digits, while PIUSI K44 has a partial indicator with 4 digits (max. 9999 litres), with a total of 7 digits.

Precision and quality

The K33 and K44 mechanical diesel flow meters have been designed for precise measurement of the quantity of fuels dispensed for non-commercial use. Easy to calibrate and install, the K33 and K44 flow meters can monitor the quantity dispensed for a maximum flow rate of 20-120 l/min and with a maximum working pressure of the pump of 10 bar. In addition, they can guarantee a burst pressure of 30 bar with a metering accuracy of +/- 1%.

Reliability

The K33 and K44 mechanical flow meter for diesel is easy to calibrate at the place of installation and is suitable for installation on pumps or service stations for diesel, for those who want to keep the amount of dispensed fluid monitored without special needs for storage.

K33 and K44 are reliable and economic mechanical flow meters that can also be used by gravity, thanks to the low resistance to flow. It is also available a pulser version of the meter which includes:

Mod. Pulser: card type "Open collector",

frequency 10 pulses/litre,

6-24 V DC power supply, max. 10 mA.

Features

Ready to use

Bursting pressure 30 bar

No battery needed

Easy to install and calibrate

4 flow direction

K33

000550000 K33 METER VER.A

000551000 K33 METER VER.B

000552000 K33 METER VER.C

000553000 K33 METER VER.D

K44

000560000 K44 METER VER.A

000561000 K44 METER VER.B

000562000 K44 METER VER.C

000563000 K44 METER VER.D

K44 Pulser

00056500A K44 PULSER METER VER.D

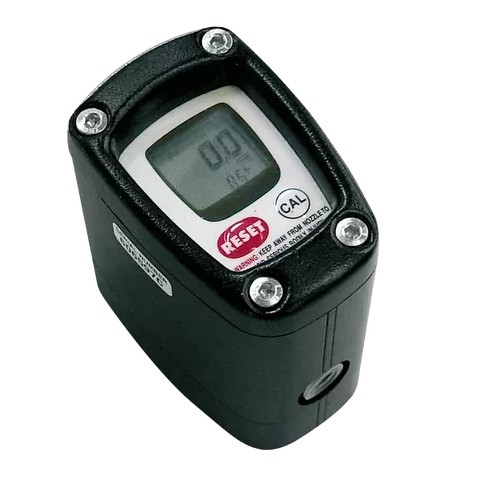

K200意大利PIUSI K200PULSERHP 1/8 BSP電子流量計適用于潤滑油監測

K200: Advanced grease flow meter for low to high viscosity lube oils. Achieve high precision in monitoring with our grease flow meter - Upgrade now!

Request information

Find a dealer

Support

Product category

Lubrication

Fluid

Grease, Oil

Application

Garage Equipment, Agriculture, Logistic, Mining & Construction, Industrial, Naval

Datasheet & manuals

Spare parts

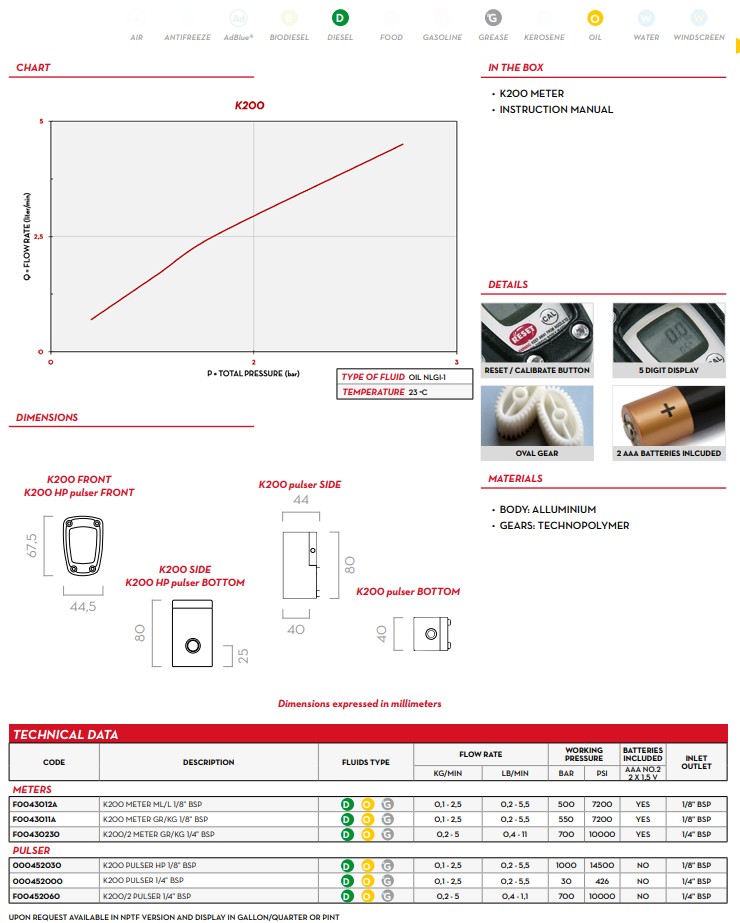

The PIUSI K200 product is an electronic flow meter suitable for the monitoring of lubricating oil. K200 as electronic flow meter shows on the display a partial-total of 5 digits (h=11.5 mm) with floating point from 0.001 to 999.99 Total, non-resettable to 8 digits (h=5 mm) from 1 to 99999999.

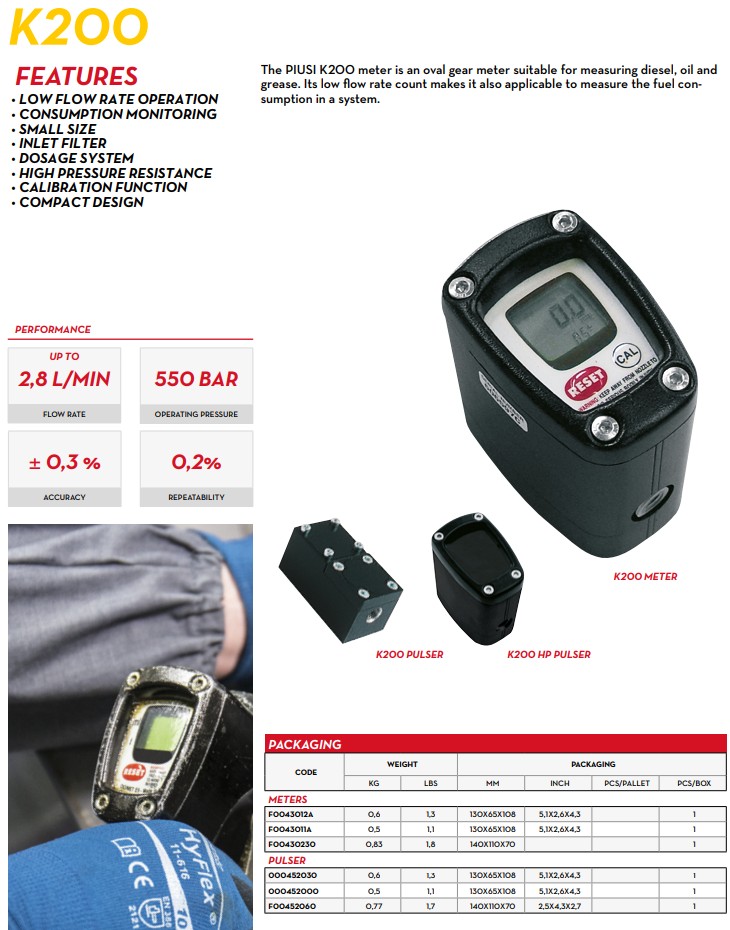

K200

PIUSI K200產品是一款適用于潤滑油監測的電子流量計。K200 作為電子流量計，在顯示屏上顯示 5 位數字的部分總計（h=11.5 mm），浮點范圍為 0.001 至 999.99 Total，不可重置為 1 至 99999999 的 8 位數字（h=5 mm）。

高度

K200 數字流量計旨在確保精確測量分配量。K200油流量計配備縮醛樹脂橢圓齒輪，可以監測低、中、高粘度流體的點膠流量，例如燃料、潤滑油和其他與建筑材料相容的特殊流體，用于非商業點膠。

長期可靠

K200 由帶有鋁制測量室的機身組成，可隨著時間的推移提供大的可靠性。脈沖發生器類型為簧片開關，單通道，可更好地跟蹤分配的數量，大流量為 2.8 l/min，計量精度為 +/- 0.5%。

K200 石油流量計還包含以下功能：

重復性0.2%。

大壓降 < 0.5 bar 流量。

000452030 K200 PULSER HP 1/8" BSP

F00452060 K200/2 PULSER 1/4" BSP

000452000 K200 PULSER 1/4" BSP

F0043011A K200 METER GR/KG 1/8" BSP

F0043012A K200 METER ML/L 1/8" BSP

F00430230 K200/2 METER GR/KG 1/4" BSP

High precision

The K200 digital flow meter has been designed to ensure precise measurement of the quantity dispensed. Equipped with acetal resin oval gears, the K200 oil flow meter can monitor the dispensed flow of low, medium and high viscosity fluids such as fuels, lubricating oils and other special fluids compatible with the construction materials, for non-commercial dispensing.

Reliable over time

K200 consists of a body with aluminum measuring chamber for maximum reliability over time. The pulser type is reed switch, single-channel for better traceability of the quantity dispensed for a maximum flow rate of 2,8 l/min and a metering accuracy of +/- 0.5%.

These features are also included in the K200 flow meter for oil:

Repeatability 0.2%.

Pressure drop < 0.5 bar at the max. flow rate.

Low flow rate operation

Consumption monitoring

Small size

Inlet filter

Dosage system

High pressure resistance

Calibration function

Compact design

Spare parts and manuals

Meter version

F0043011A K200 METER GR/KG 1/8" BSP

F0043012A K200 METER ML/L 1/8" BSP

F00430230 K200/2 METER GR/KG 1/4" BSP

Pulse version

000452030 K200 PULSER HP 1/8" BSP

F00452060 K200/2 PULSER 1/4" BSP

000452000 K200 PULSER 1/4" BSP

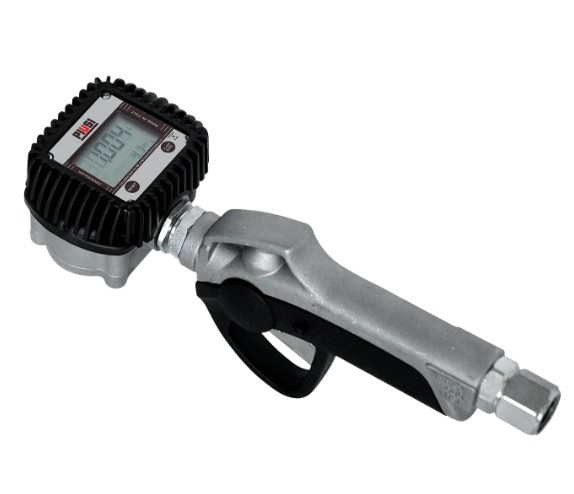

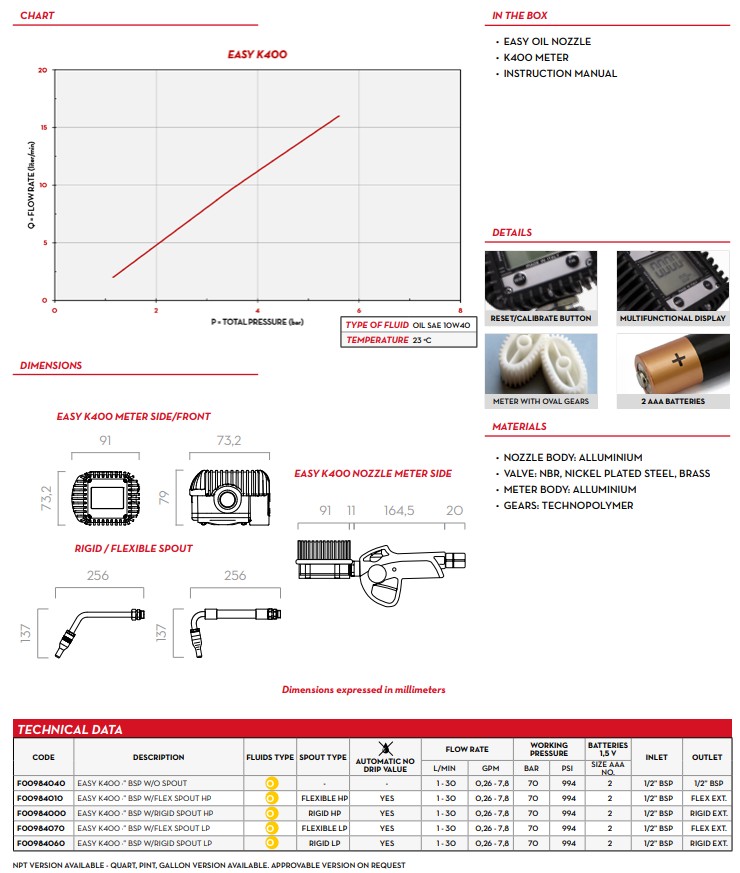

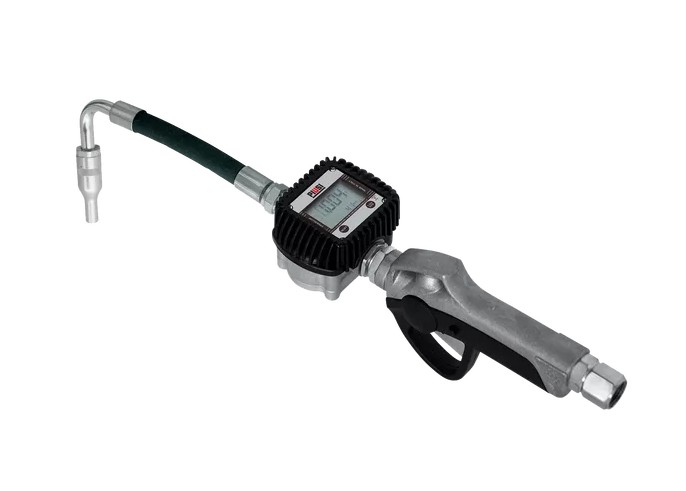

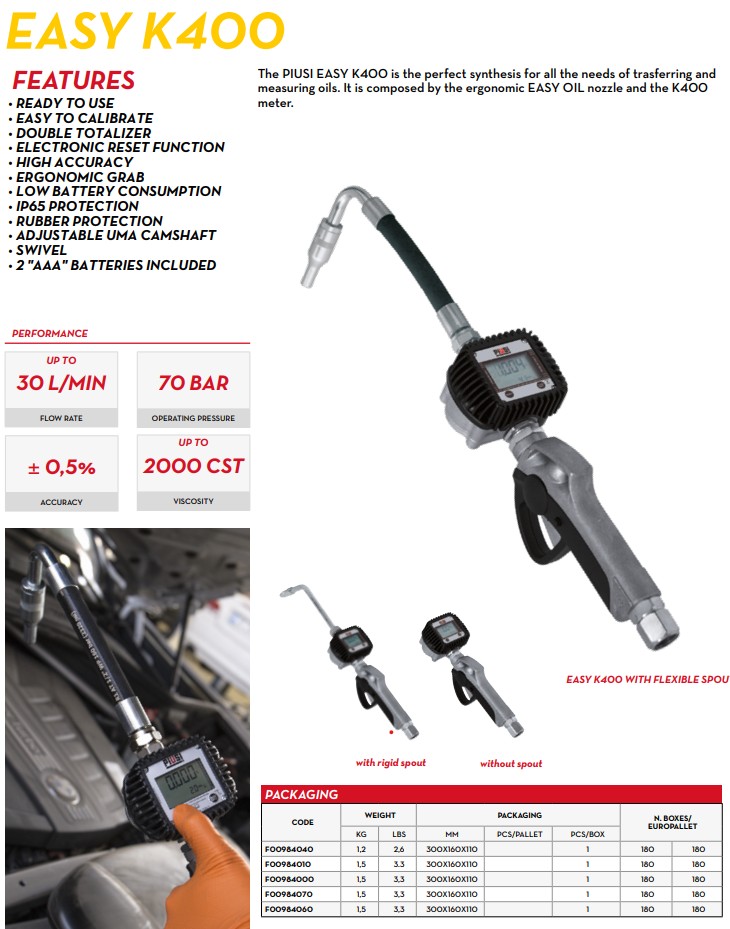

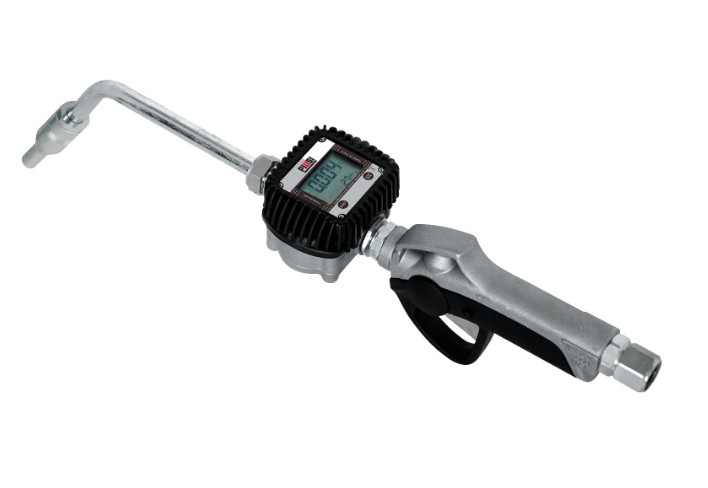

EASY K400

Streamline oil dispensing with our oil meter gun, featuring an electronic meter and acetal resin oval gear. Achieve flow rates up to 30 l/min.

Oil

Garage Equipment, Agriculture, Logistic, Mining & Construction, Industrial

Nozzle with electronic meter. The K400 can be integrated with nozzle to create a handy, ergonomic instrument for controlling and managing oil delivery. Meter body in aluminium to withstand high pressure.

Standard AAA-size batteries

Bursting pressure: 200 bar

Easy inspection and maintenance

Working pressure 70 bar

Oval gear in acetal resin

5 figure partial display (Resettable), 7 figure total

Flow rate up to 30 l/min

Accuracy +/- 0,5 %

Repeatability: 0.2 %

Viscosity 2 - 2000 cSt

Easy to calibrate

Double totalizer

Electronic reset function

Ergonomic grab

Low battery consumption

IP65 protection

Rubber protection

Swivel

F00984000 EASY K400 ?" BSP W/RIGID SPOUT HP

F00984010 K400N L/BSP N +EO+SW+EF+PROT

F00984040 EASY K400 ?" BSP W/O SPOUT

F00984060 EASY K400 ?" BSP W/RIGID SPOUT LP

F00984070 EASY K400 ?" BSP W/FLEX SPOUT LP

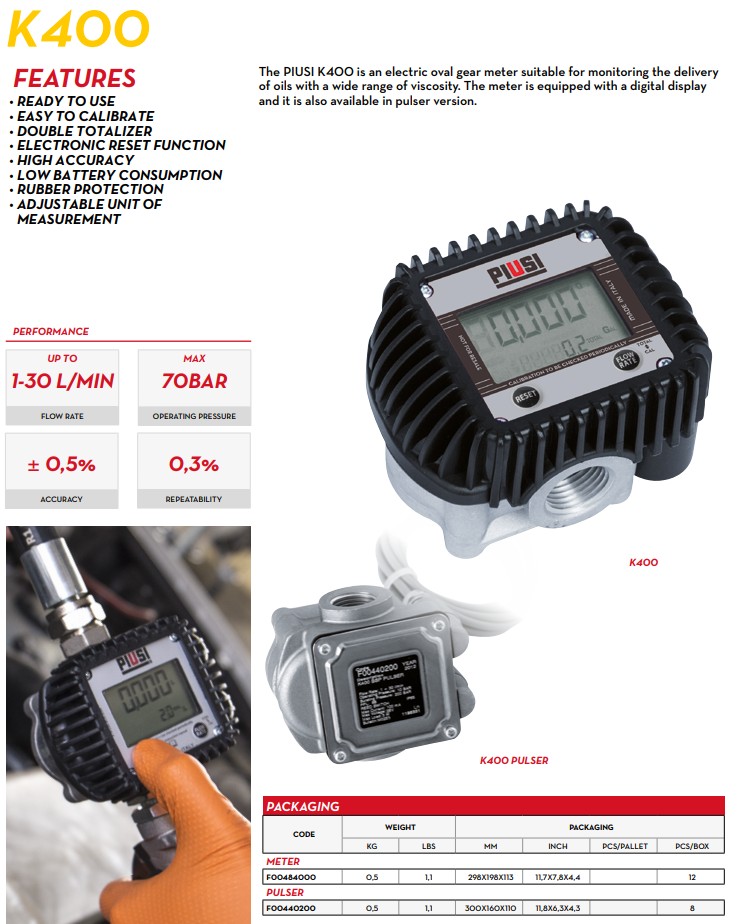

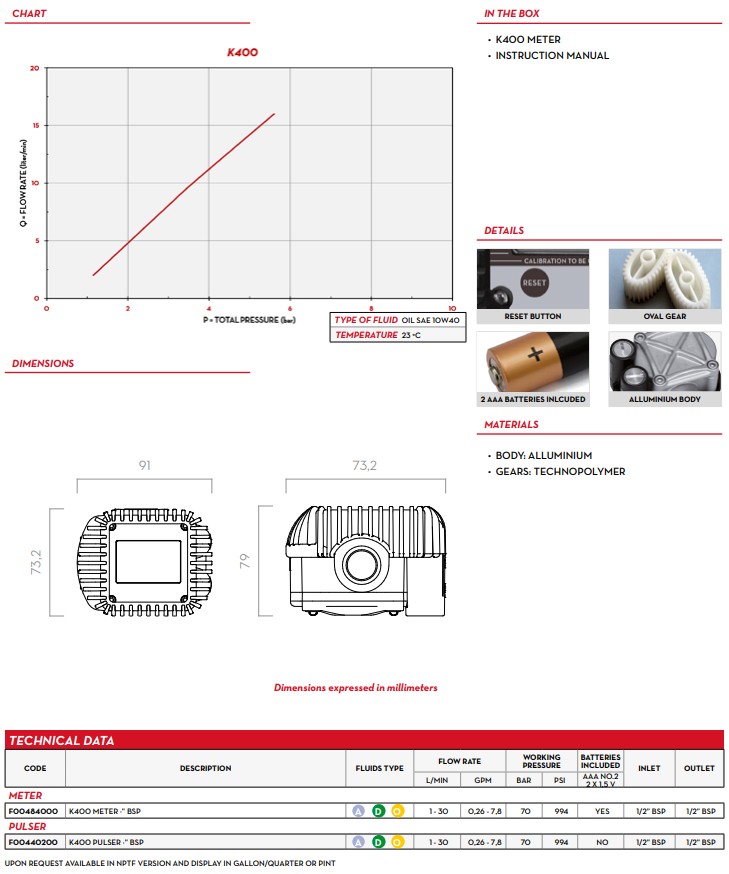

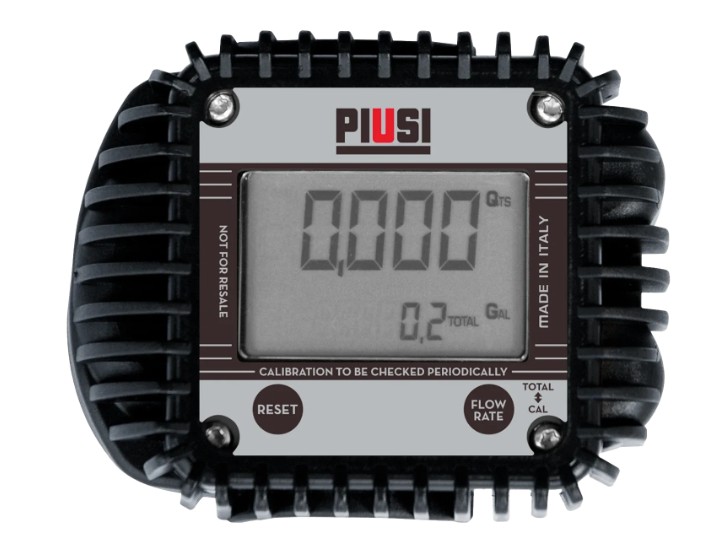

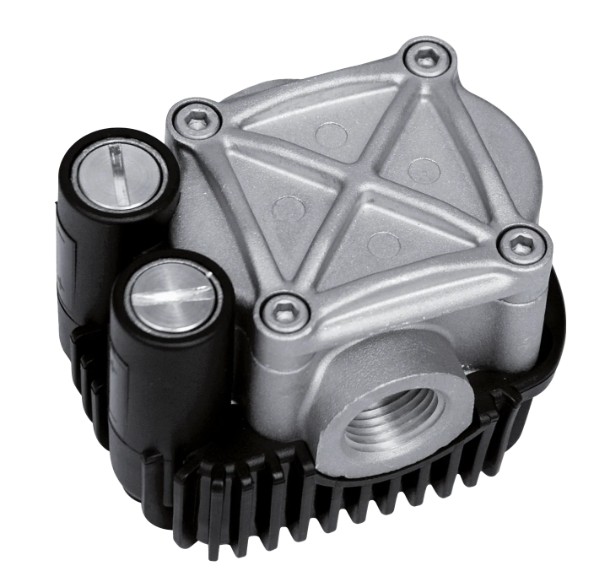

K400

Optimise your output with our K400: Premium oval gear oil meter for precise control of lubricating oil dispensing.

Video tutorial

Oval gear electronic flow meters and oval gear pulser flow meters for controlling the dispensing of lubricating oils and diesel. Body with aluminium measuring chamber. The operating principle of the oval gears allows for a high degree of accuracy when measuring and reduced loss of pressure.

The new K400 can be used either in-line on hoses, or on the nozzle, for instantaneous measuring of the fluid dispensed.

Aluminium body, Rubber protector

5 figure partial display(Resettable), 7 figure total

Loss of pressure <0.5 bar

High accuracy

Adjustable unit of measurement

F00484000 K400 METER ?" BSP

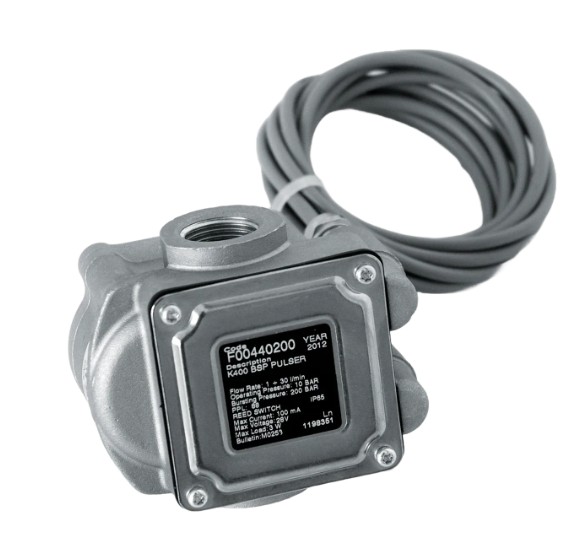

F00440200 K400 PULSER ?" BSP

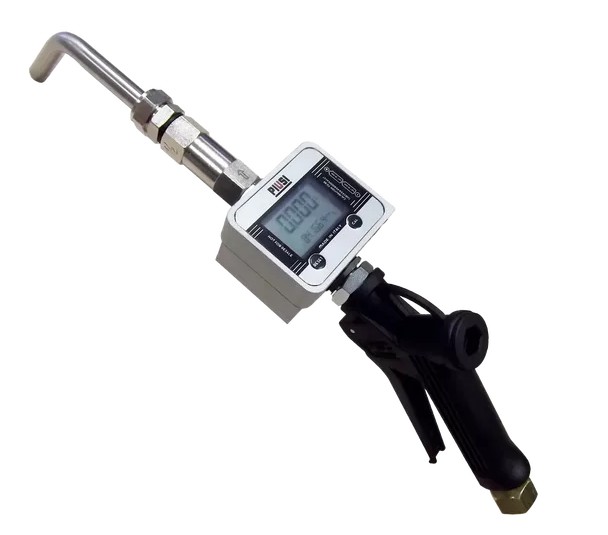

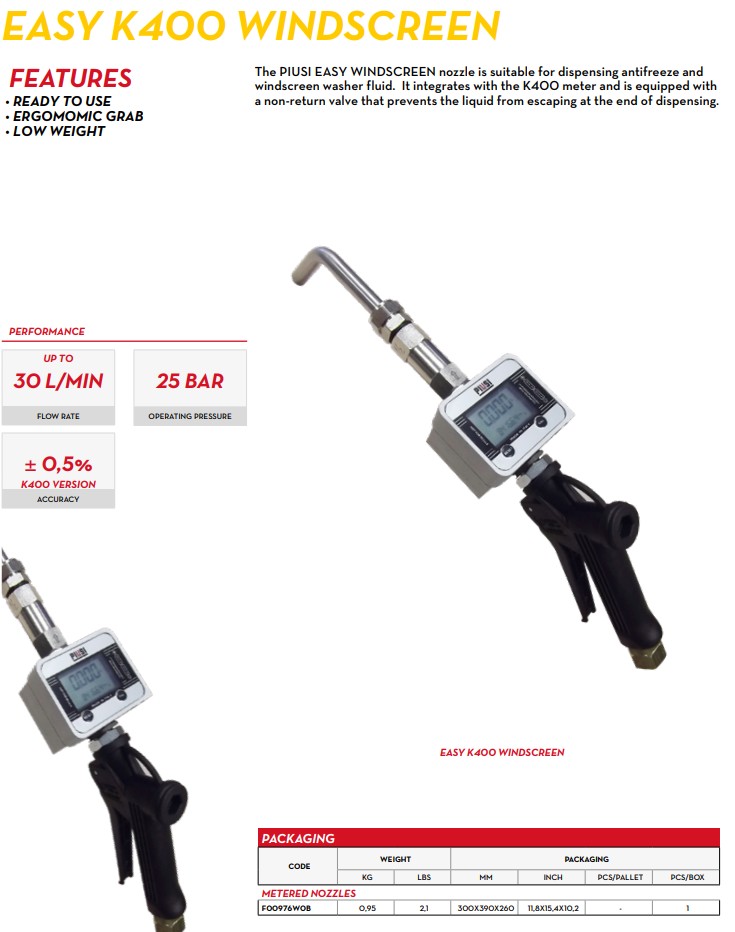

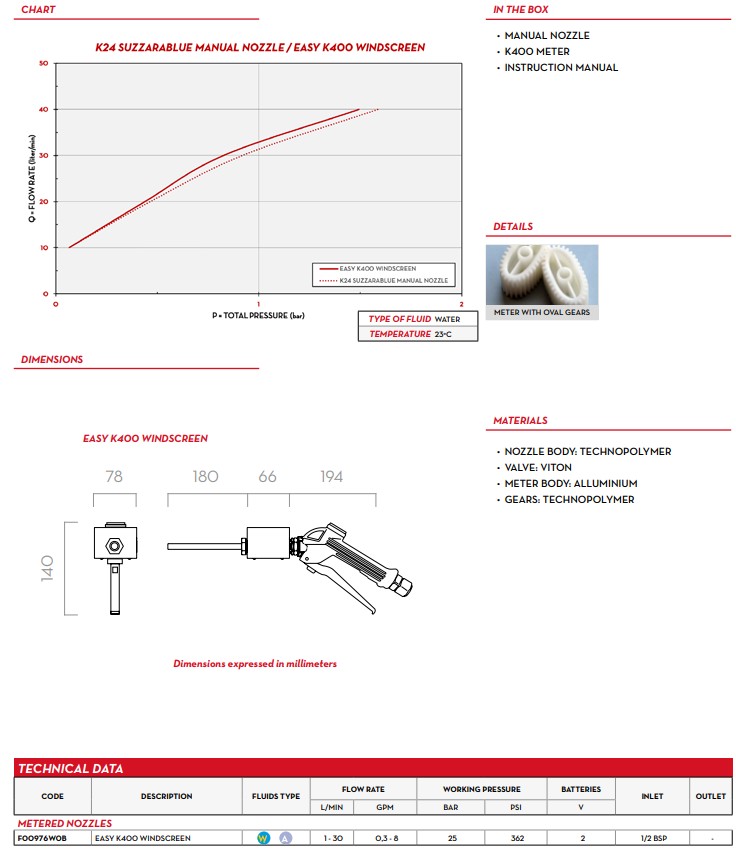

EASY K400 WINDSCREEN

Upgrade your dispensing tools with our manual antifreeze gun, perfect for delivering windscreen washing liquid with an electronic meter.

Antifreeze, Windscreen

Agriculture, Logistic, Industrial, Garage Equipment

EASY K24/K400 WINDSCREEN

The EASY K400 WINDSCREEN is a manual nozzle suitable for the delivery of Antifreeze and Windscreen washing liquid. It comes with the windscreen version of the K400 meter.

MAIN FEATURES

Specially made of strong plastic material.

Flow rate: from 1 to 120 l/min

Precision: ± 0.5 %

Max pressure: 25 bar

Ergomomic grab

Low weight

In depth

EASY K400 WINDSCREEN-LUBE-PIUSI-DATASHEET-LUBE-EN

F00976W0A EASY K400 WINDSCREEN ?" BSP W/SPOUT

F00976W0B EASY K400 WINDSCREEN ?" BSP W/SP/BP

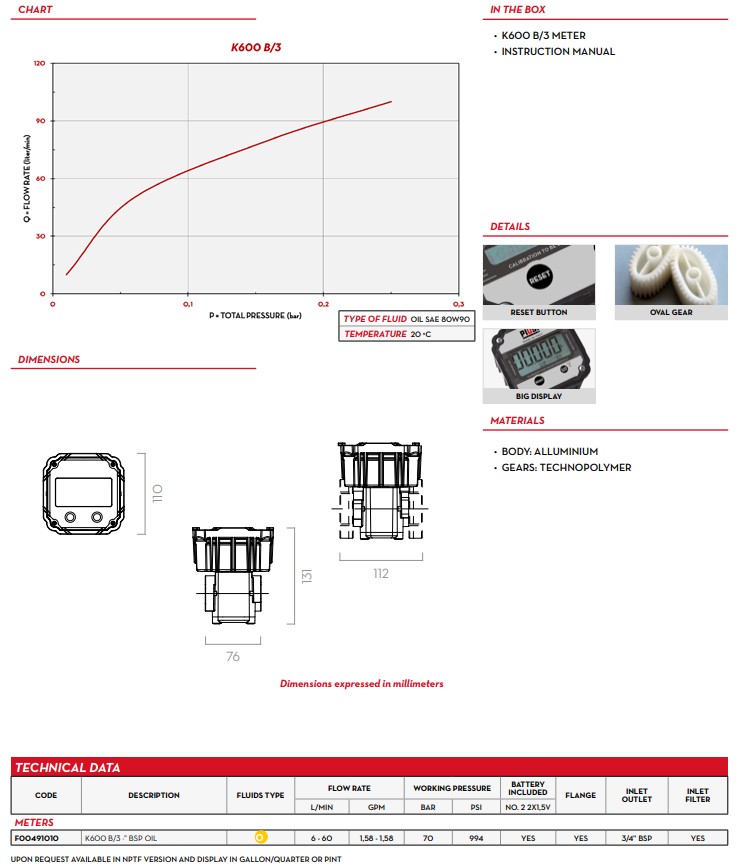

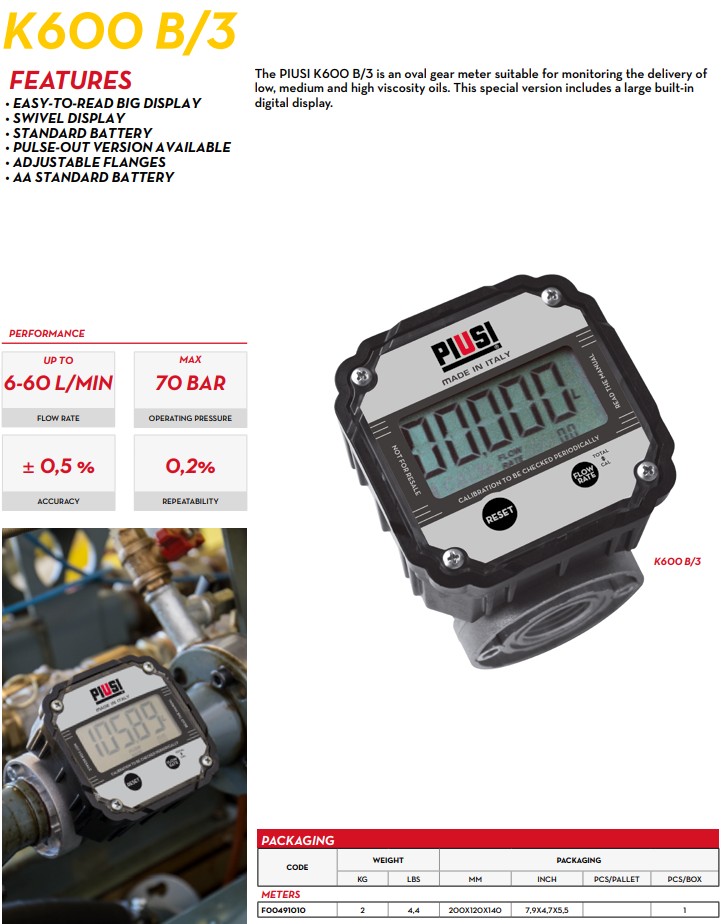

K600 B/3 - Oil version

Enhance your oil monitoring with K600 B/3, a top-tier lube oil flow meter featuring an easy-to-read display.

Agriculture, Mining & Construction, Industrial

PIUSI K600 B/3 for lubricating Oil

PIUSI K600 B/3 is an electronic oil flow meter suitable for monitoring the quantity of lubricating oil dispensed. For non-commercial use, the uniqueness of K600 B/3 is to have a larger, easy to read display sized 80 mm, with a partial total of 5 digits (h=24 mm) with floating point from 0.001 to 999.99 Total, not resettable to 8 digits (h=5 mm) from 1 to 99999999.

MADE IN PIUSI

The K600 B/3 flow meter consists of oval gears in acetal resin for precise monitoring of the dispensed quantity of low, medium and high viscosity fluids, such lubricating oils. The structure of the flow meter is solid and robust with an aluminium measuring chamber and the integrated suction filter safeguards the integrity of the flow meters. It guarantees a safe dispensing without impurities, which may result in unpleasant blocks while dispensing.

HIGH PRECISION

The K600 B/3 flow meter for oil ensures a monitoring accuracy of +/- 0.5% for a maximum flow rate of 100 l/min.

These features complete the K600/3 flow meter:

Repeatability 0.2%

IP66 protection against dust and water.

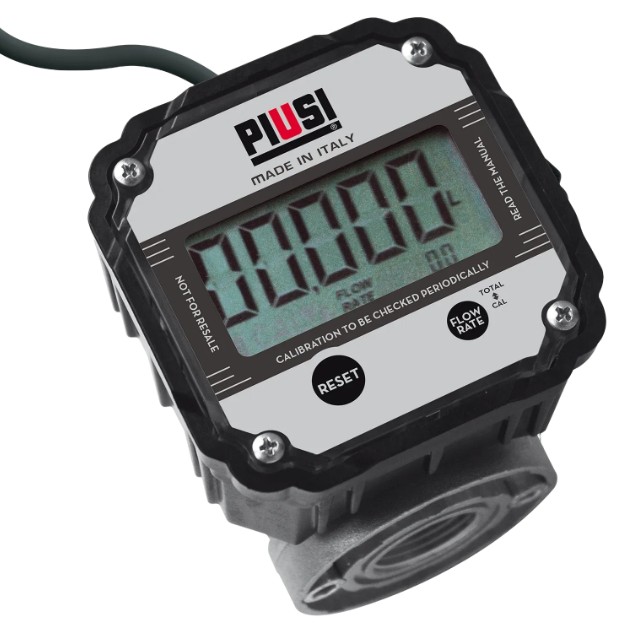

K600 B/3

The pulse out version is also available on request. It is divided into two types of flow meters, which differ according to the type of installation. The K600 B/3 flow meter has a display and can be installed in the fluid transfer system, while K600 B/3 Pulse-OUT has no display and can be connected via a 10-metre connection wire to the remote flow meter. Its application is recommended in case you want to monitor the quantity dispensed not directly on the system, but from the office.

Easy-to-read big display

Swivel display

Standard battery

Pulse-out version available

Adjustable flanges

AA standard battery

F00491010 K600 B/3 ?" BSP OIL

00049700A K600/4 METER 1 ?" BSP

000473000 K600/4 PULSER 1 ?" BSP

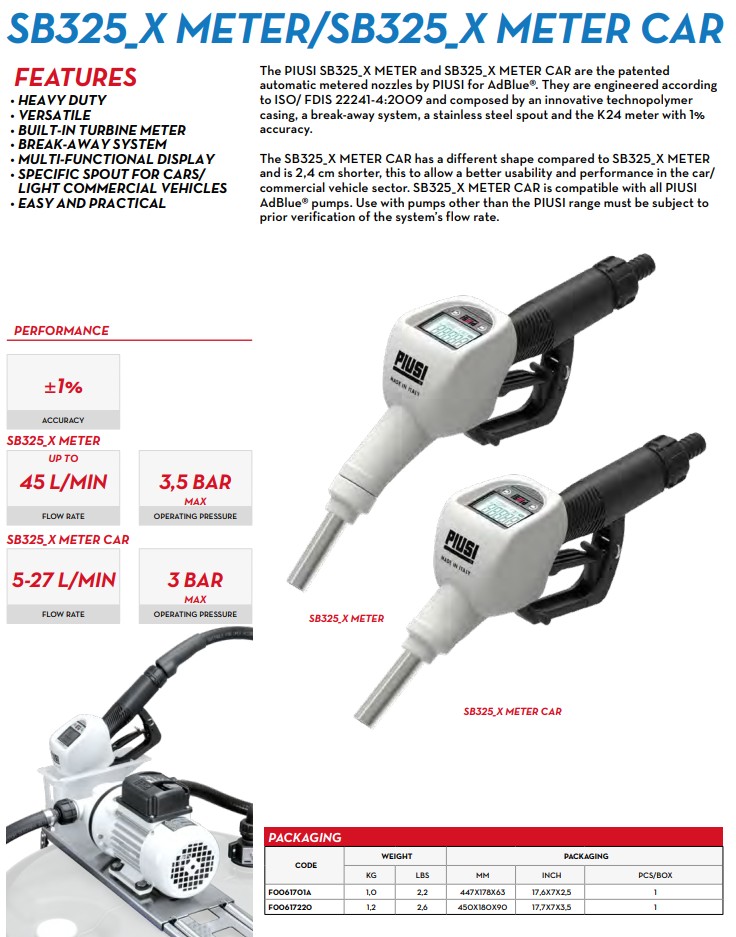

SB325_X METER

SB325_X meter: an AdBlue nozzle with meter, featuring a technopolymer casing, break-away system, and stainless steel spout.

AdBlue?/Other fluids

AdBlue?

PIUSI K24 A是一種數字渦輪流量計，適用于監控柴油和對輸送的流體進行數字管理。

K24 A數字柴油流量計設計用于監控低粘度流體的流量。

K24 A易于安裝，在管線內或在輸送管的末端，都配備了適用于各種位置的顯示器，以方便閱讀。堅固的機體和密封的內部電子板使其幾乎可以在任何工作條件下使用。

K24 A具有鋁制主體和聚丙烯渦輪。脈沖的類型是單通道，簧片開關。那里

帶有LCD顯示屏的電子卡顯示5位數字，從0.1到99999，共6位數字，從1到999999，可重置。顯示屏還顯示*大支持的流速120 l / min。

K24 A柴油升計數器保證了+/- 1％的計數精度，如果計數不準確，則可以隨時對K24 A進行校準，以確保其工作的*大精度。

K24升計數器在120 l / min時的壓降0.03 bar和0.2％的重復性時，具有兩個AAA電池的電源。

借助旋轉顯示器，K24 A可以適應任何應用和工作條件。

應用農業，工業，物流

PiusiK400

PiusiF00208P20

PiusiPiusiF00208P30

PiusiF00208P40

PiusiF00332A0A

PiusiF00332A1A

PiusiF00332A4A

PiusiF00332A6A

PiusiF00332A2A

PiusiF00332A3A

PiusiF00332A5A

PiusiF00332A7A

PiusiF00332B0A

PiusiF0033209A

PiusiF0033210A

PiusiF0033205B

PiusiF0040710A

PiusiF0040721B

PiusiF00420000A

PiusiF00420001A

PiusiF00410000

PiusiF00476X00

PiusiF0040700A

Piusi F00408100

PIUSI K24 PULSER

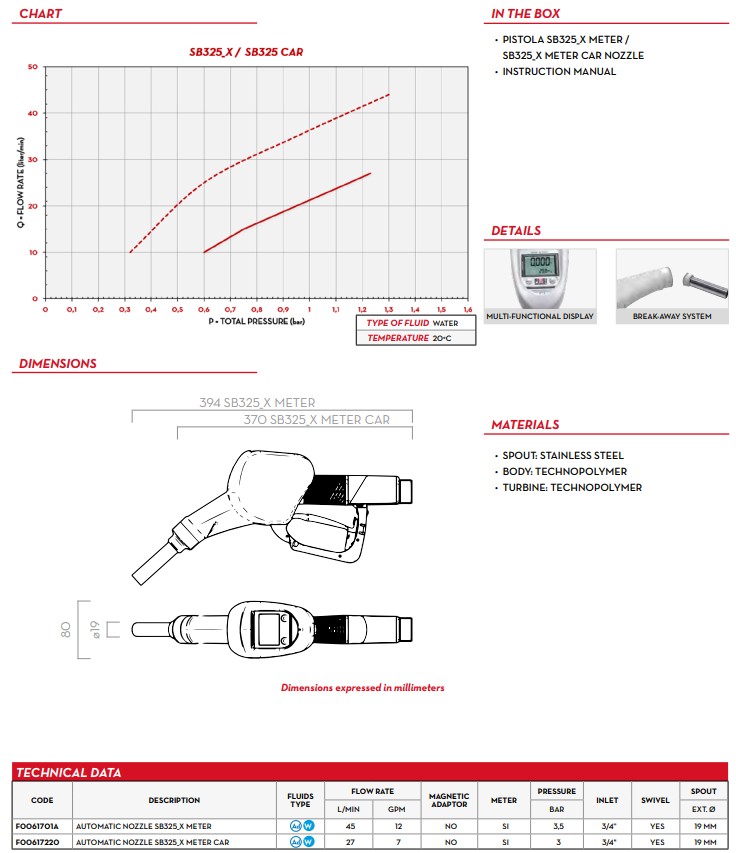

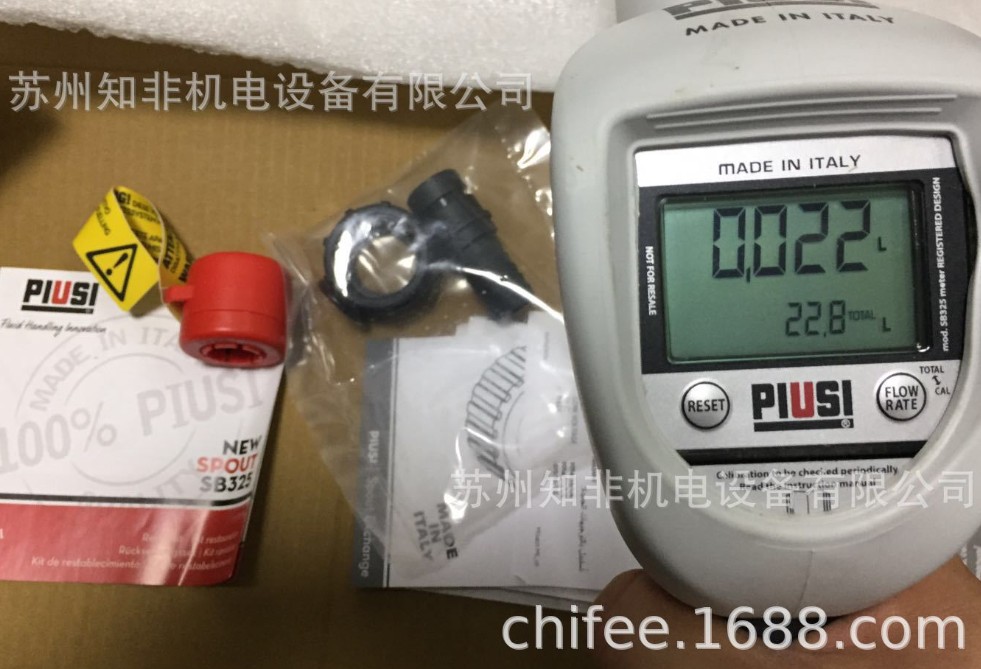

The PIUSI SB325_X METER is the patented automatic nozzle-meter by Piusi for AdBlue? designed according to ISO/ FDIS 22241-4:2009. It is composed by an innovative technopolymer casing that protects against weathering and UV radiation, a break-away system, a stainless steel spout and the PIUSI K24 meter with 1% accuracy. This nozzle is expressly engineered for heavy vehicles refilling.

F0061701A AUTOMATIC NOZZLE SB325_X METER

Accessories

F15165000 ELAFIX 40 MAGNETIC ADAPTOR

F18400000 PIUSI MAGNETIC ADAPTOR

F1917400A KIT SB325_X WITH MISFILL AND MAGN ADAPT

Safety is guaranteed by the break-away system. In the event that a vehicle accidentally drives away with the nozzle still in the tank, the spout is designed to detach from the nozzle. This system also allows for a quick repair by simply fitting a new spout onto the nozzle.

Heavy duty

Versatile

Built-in turbine meter

Break-away system

Multi-functional display
