羅卓尼克ROTRONIC露點儀 MICHELL露點儀– 微量水分的測量和監測Rotronic低露點儀探頭是測量微量水分的理想選擇; 例如在壓縮空氣系統、制冷、干燥劑、干燥器中。 露點儀測量儀器用于制藥和原材料工業，暖通空調（HVAC），潔凈室、生產、加工技術以及注塑成型領域，換句話說，無論何時測量和監測露點儀或微水分都非常重要。

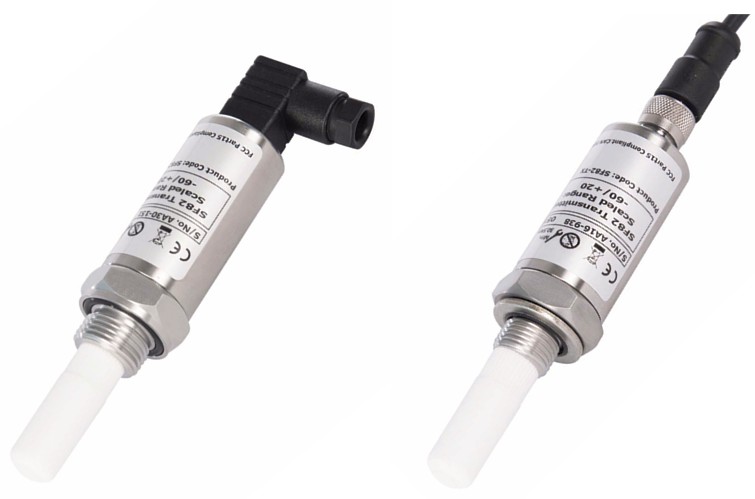

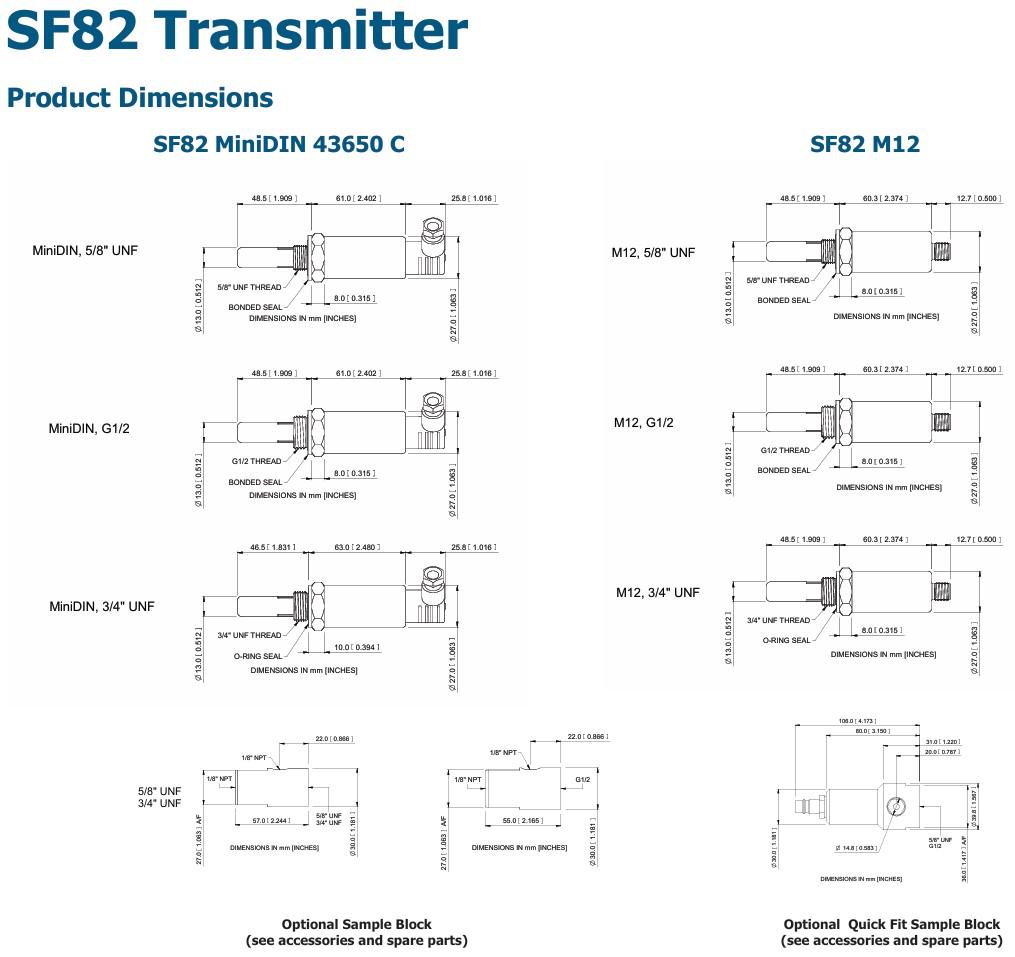

Michell SF82 Dew-Point Transmitter for Compressed Air 英國MICHELL/瑞士ROTRONIC代理商-蘇州知非機電設備有限公司

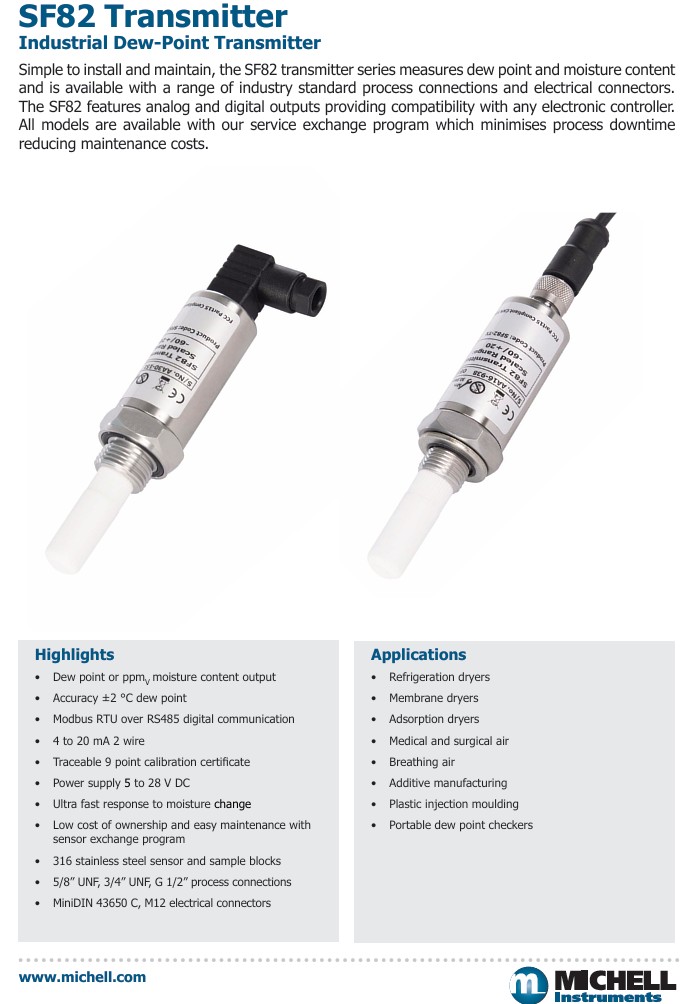

The SF82 features analog and digital outputs providing compatibility with any electronic controller. All models are available with our service exchange program which minimises process downtime

reducing maintenance costs.

Highlights

Dew point or ppmV moisture content output

Accuracy ±2 °C dew point

Modbus RTU over RS485 digital communication

4 to 20 mA 2 wire

Traceable 9 point calibration certificate

Power supply 5 to 28 V DC

Ultra fast response to moisture change

Low cost of ownership and easy maintenance with sensor exchange program

316 stainless steel sensor and sample blocks

5/8” UNF, 3/4” UNF, G 1/2” process connections

MiniDIN 43650 C, M12 electrical connectors

Applications

Refrigeration dryers

Membrane dryers

Adsorption dryers

Medical and surgical air

Breathing air

Additive manufacturing

Plastic injection moulding

Portable dew point checkers

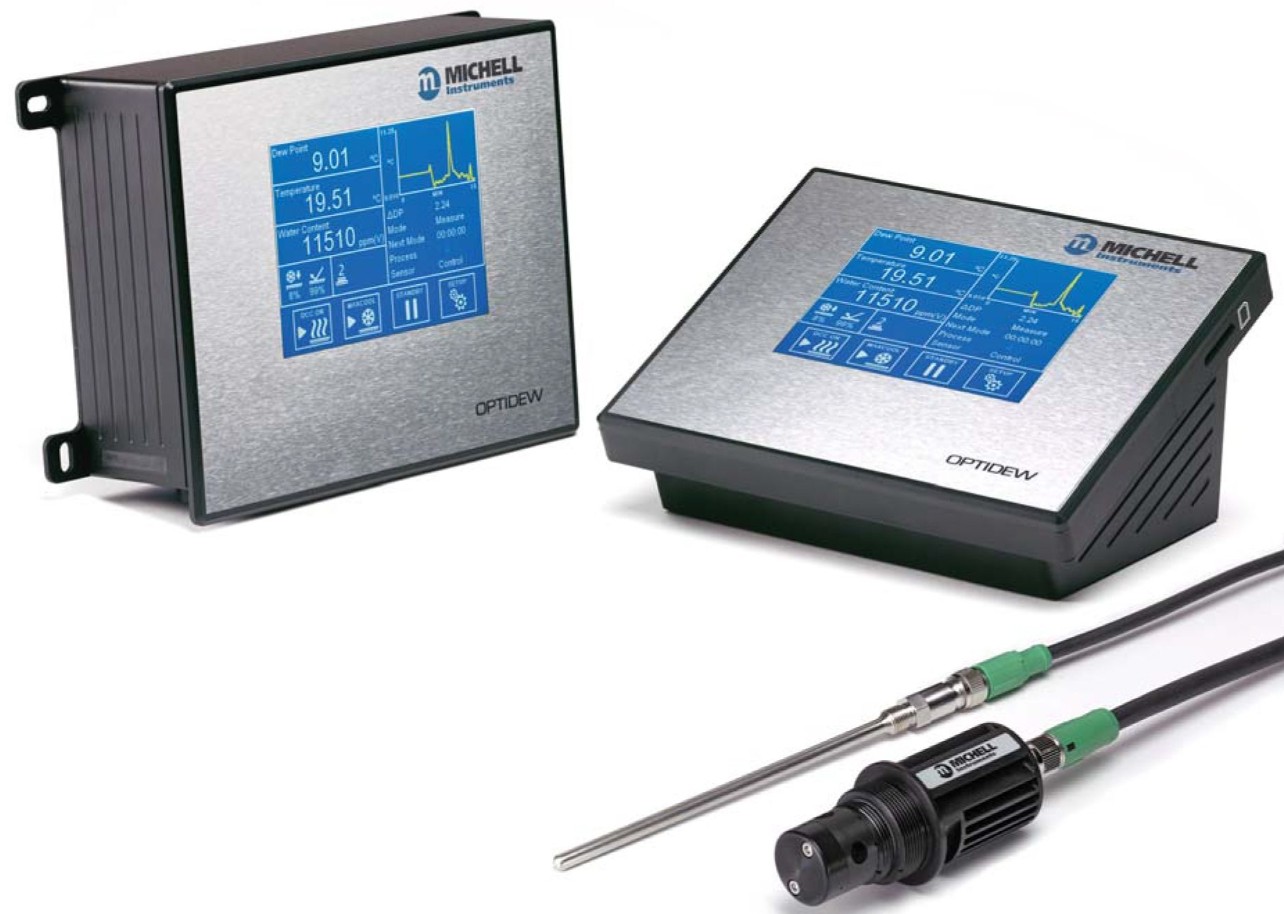

The Optidew is a fast-responding chilled mirror hygrometer, equally at home in both industrial humidity control and precision laboratory applications. It is available in bench top and wall mount confi gurations, and features an intuitive touch screen interface for easy local operation. Using the latest developments in chilled mirror technology, it has a response speed comparable to polymer relative humidity sensors, combined with the reliability of drift-free measurements common to all chilled mirror instruments.

Product features

New chilled mirror hybrid sensor gives fast dynamic response to changes in humidity

Accurate to ±0.15°C dew point, ±0.1°C temperature

Wide measurement range from -40 to +120°C dew point

Choice of communication methods, including Modbus TCP over Ethernet communication for easy networking

Optional pressure transmitter for accurate calculation of ppmV & g/kg

Reference humidity instrument for climatic and environmental chambers

Inlet air measurement for engine testing

HVAC testing

Environmental monitoring in clean rooms

Coating process monitoring – for confectionary and pharmaceuticals

Control of humidity for metallurgical processes

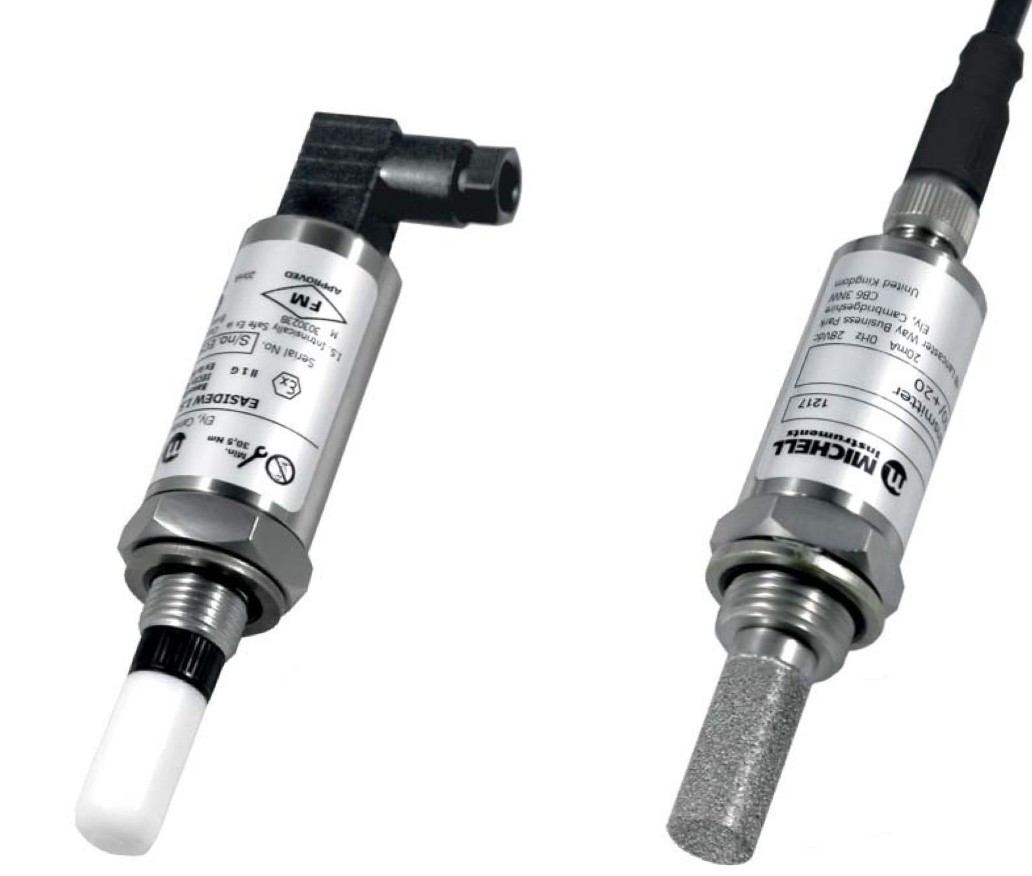

MICHELL Easidew Dew-Point Transmitter for Compressed Air

Measurement ranges -110 up to +20°Cdp

2-wire loop power connection

Accuracy ±2°Cdp

Traceable calibration certifi cate

Power supply 12 to 28 V DC

Easidew I.S. IECEx, cCSAus, FM and ATEX approvals

316 Stainless steel sensor and sample blocks

MiniDIN 43650, M12 electrical connectors

Oxygen Service cleaned

Compressed air Class 1 to Class 6 dryers

Hydrogen coolant

Inert and bulk gases

Glove boxes

Welding gases

Hazardous areas

Oxygen purity

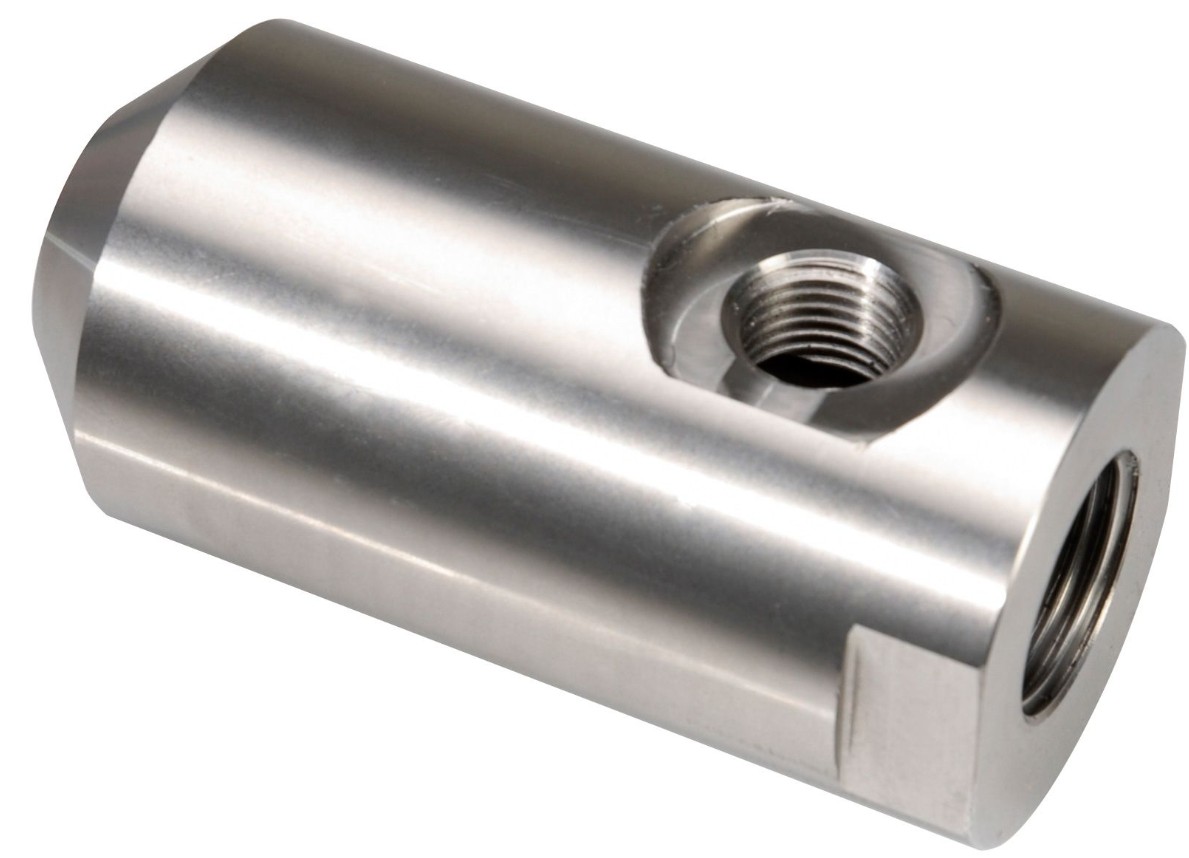

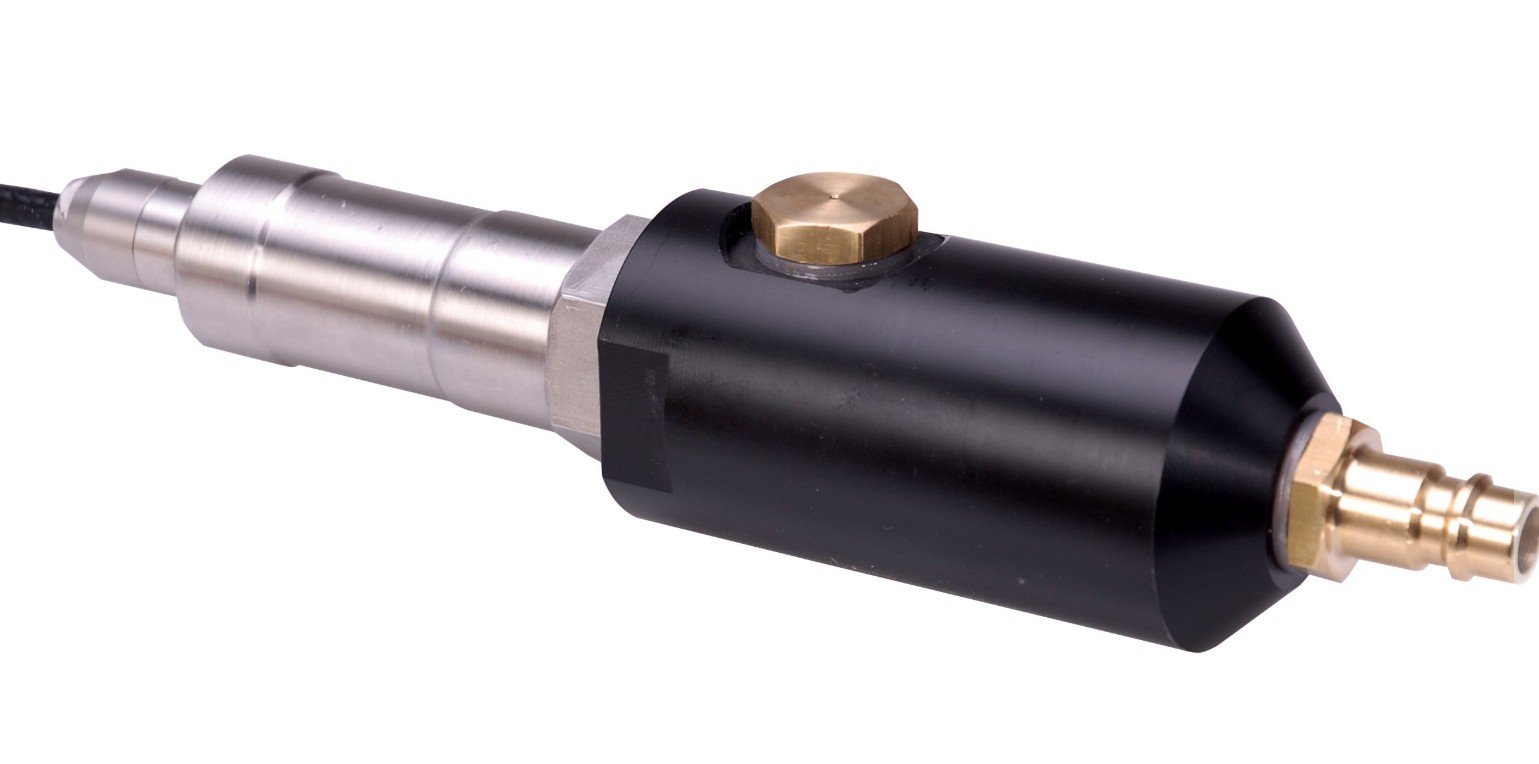

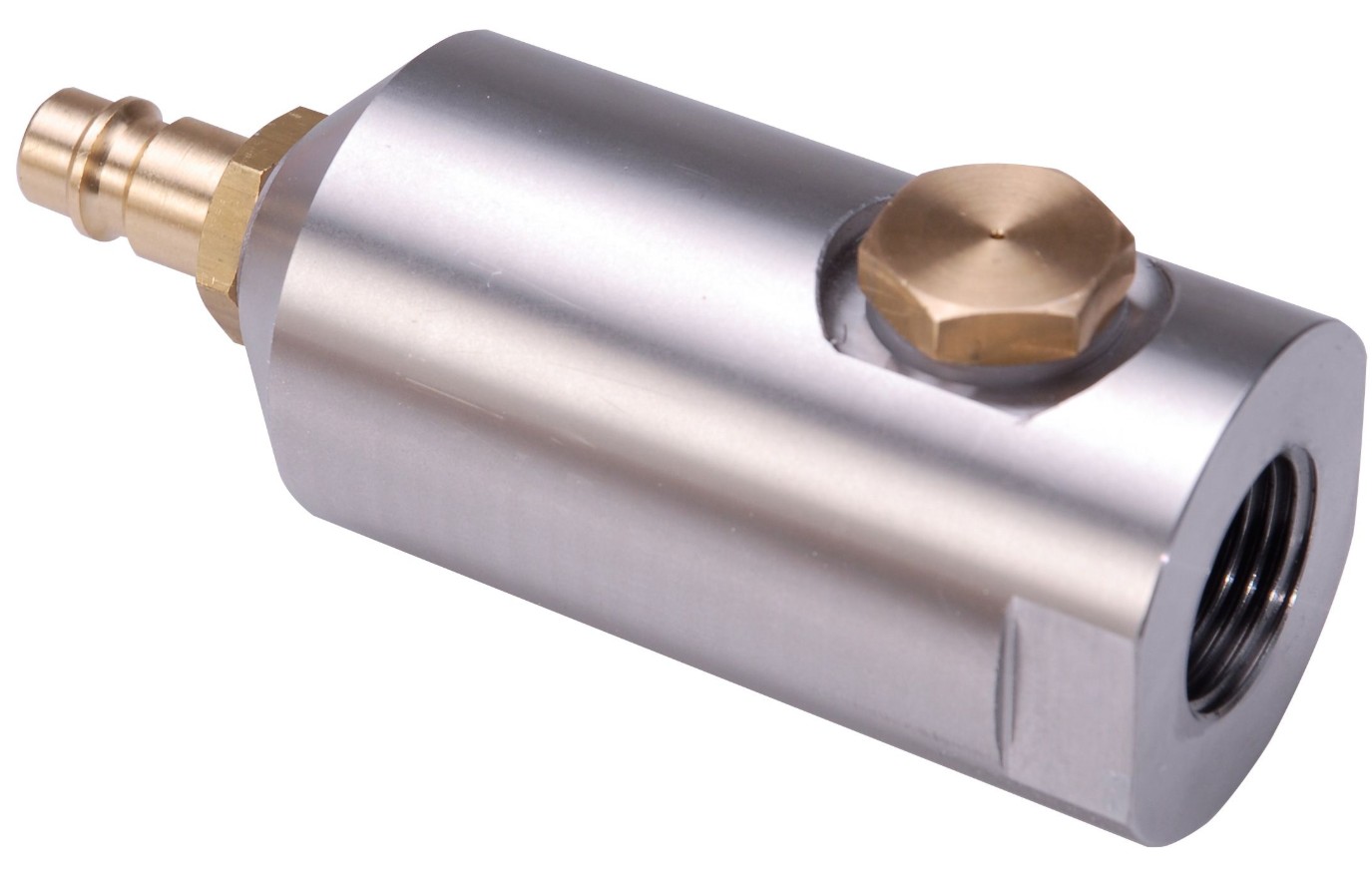

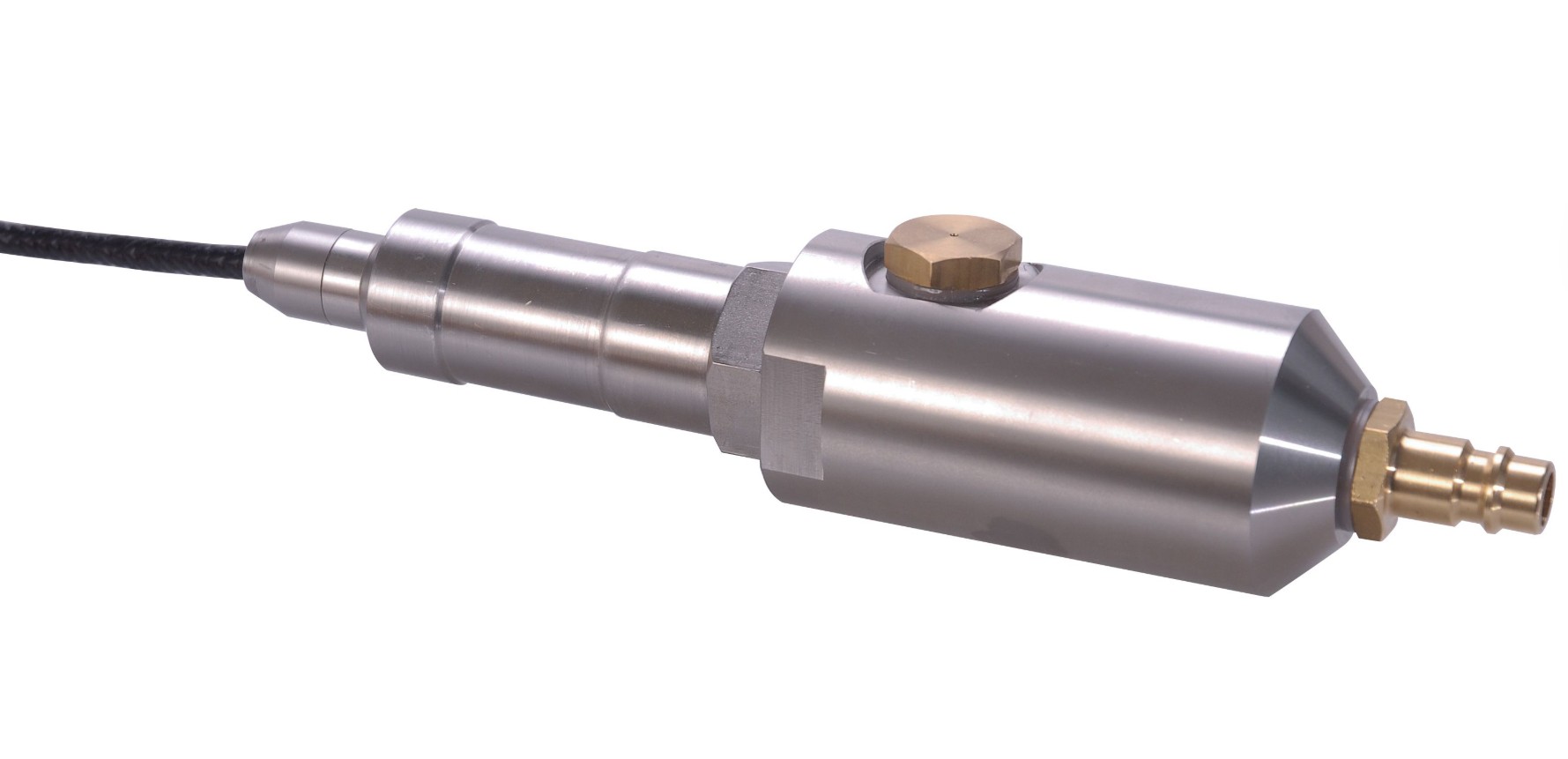

LDP-FCSB1采樣器

不銹鋼采樣器，可以限定空氣流量并提供與空氣壓縮系統的快速連接接口，可定制

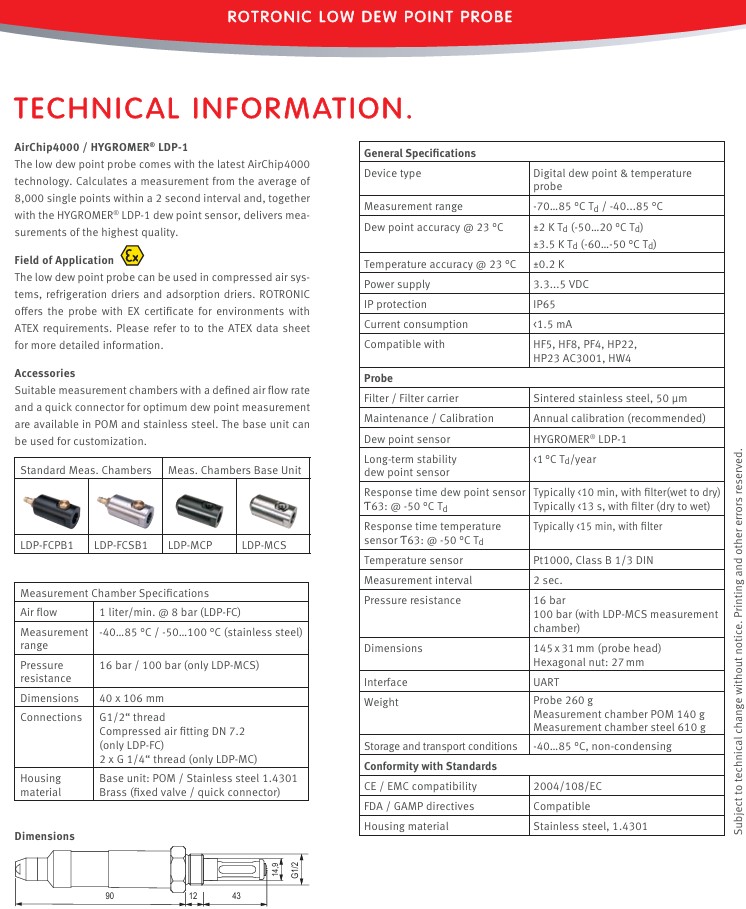

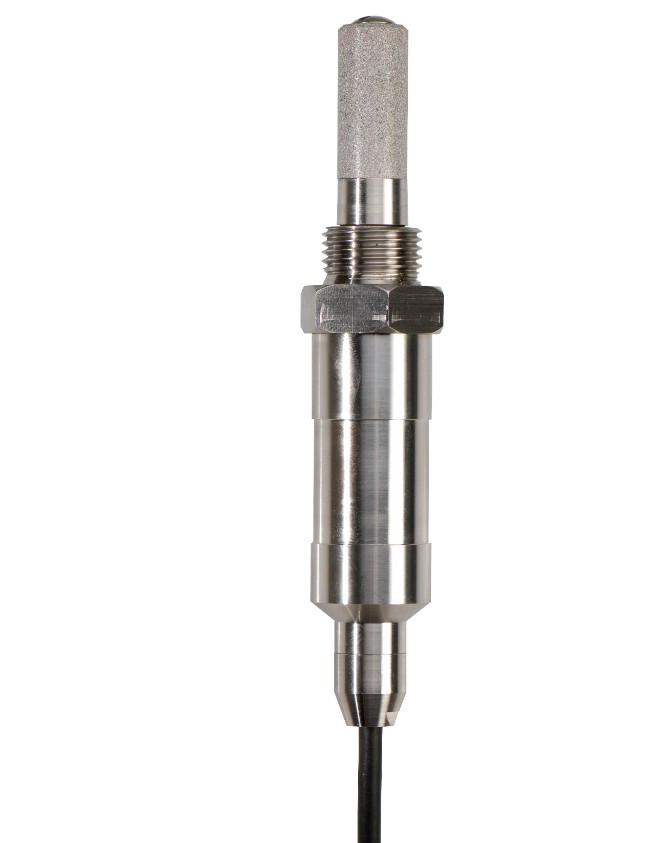

低露點儀探頭. 可靠的微水分測量.

低溫露點儀探頭采用了新的Airchip4000技術，連同Hygromer?LDP-1露點儀傳感器一起，在2秒的測量間隔時間內從8000個點的平均值中計算測量結果，提供高質量的測量解決方案。

應用領域

低溫露點儀探頭可用于壓縮空氣系統，冷凍干燥機、吸附干燥機。Rotronic提供的探頭帶有EX證書，滿足ATEX要求。

附件

通過合適的采樣室可以將空氣流量限定在佳露點儀測量點上，并提供快速連接接口，有POM和不銹鋼兩種材質可選，可定制。.

高度精確的露點儀溫度測量

承受壓力達100個大氣壓

Hygromer?LDP-1傳感器

重復性好

在下限制環境中監測微量水分

新Airchip4000測量技術

與HF5/HF8／PF4變送器和HP22 /HP23手持設備兼容

探頭類型 數字露點儀&溫度探頭

溫度傳感器 Pt1000, Class B 1/3

測量范圍 -70…85 °C Td / -40...85 °C

電源/功耗 3.3...5 VDC / <1.5 mA

尺寸 145 x 140 mm (probe head)

Hexagonal nut: 3 x 140 mm

IP防護等級 IP65

FDA / GAMP兼容性 是

測量間隔 2秒

通訊接口 UART

濾芯 燒結不銹鋼，50μm

重量 260 g

外殼材料 不銹鋼1.4301

CE/EMC認證 2004/108/EC

維護 建議每年校準

在 23 °C時的露點儀精度 ±2 K Td (-50…20 °C Td)

±3.5 K Td (-60…-50 °C Td)

在23 °C時溫度精度 ±0.2 K

露點儀傳感器 HYGROMER? LDP-1

露點儀傳感器的長期穩定性 <1 °C Td/年

露點儀傳感器 ?63響應時間 通常<10分鐘，帶過濾器

溫度傳感器響應時間 ?63: @ -50 °C Td" 通常 <15 min, 有傳感器

耐壓 16 bar

100 bar (with LDP-MCS measurement chamber)

儲運條件 -40 ... 85°C，無冷凝

EX北美識別 Class I, Div 1/2, Groups ABCD T5…T4,

Class II, Div 1/2, Groups EFG T80°C…T110°C

Ex e mb [ia Ga] IIC T5...T4 Ga/Gb

Ex tb [ia Da] IIIC T80°C…T110°C Da/Db

Class I, Zone 0/1, AEx e mb [ia Ga] IIC T5…T4 Ga/Gb

Class II, Zone 20/21, AEx tb [ia Da] IIIC T80°C…T110°C Da/Db

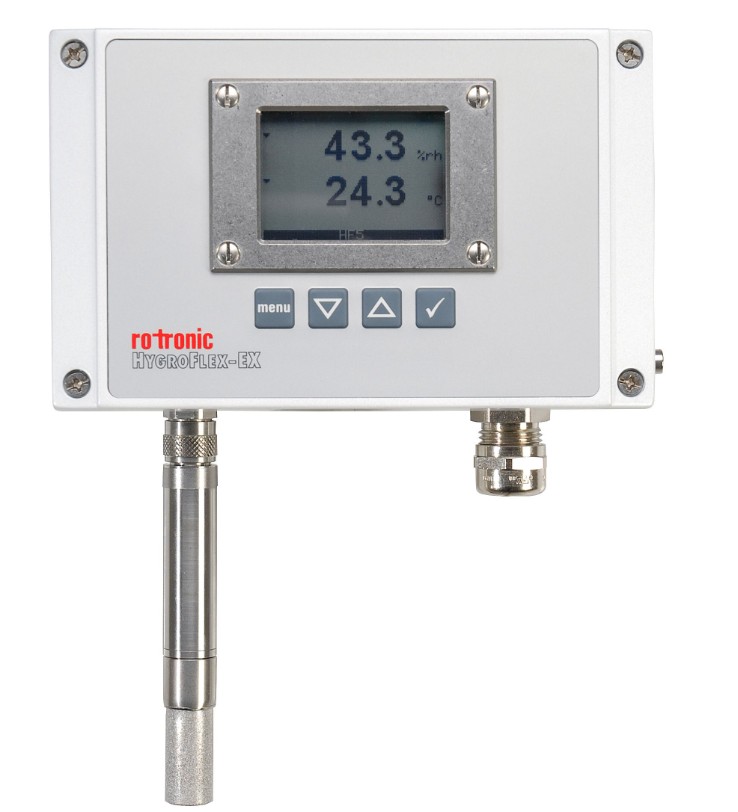

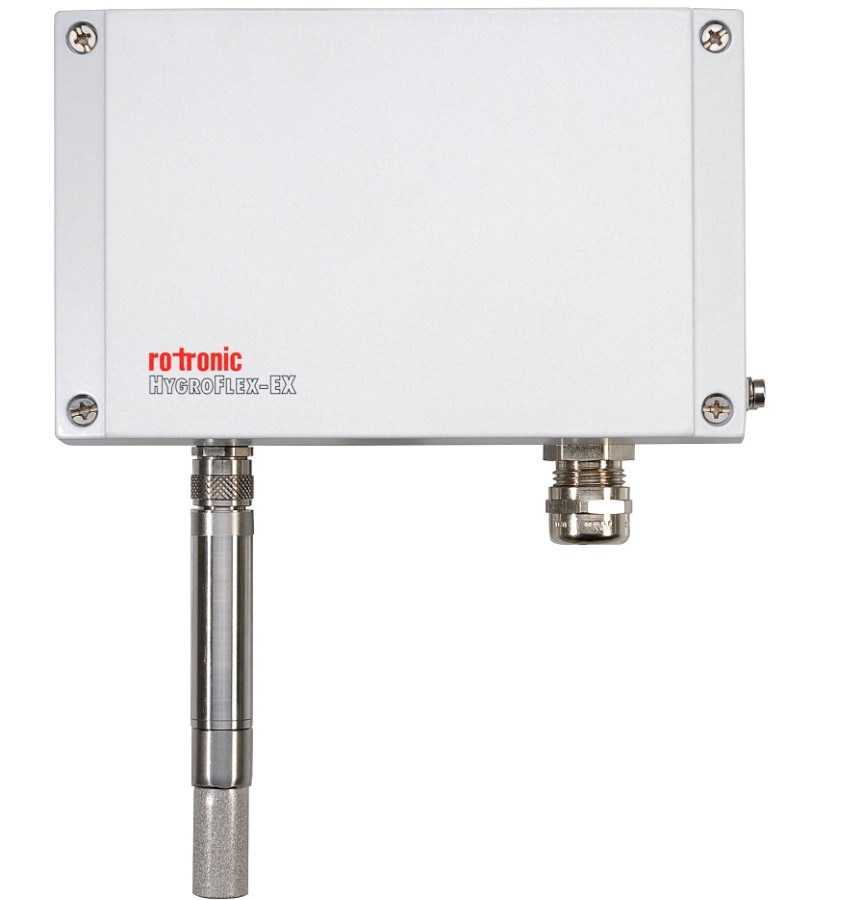

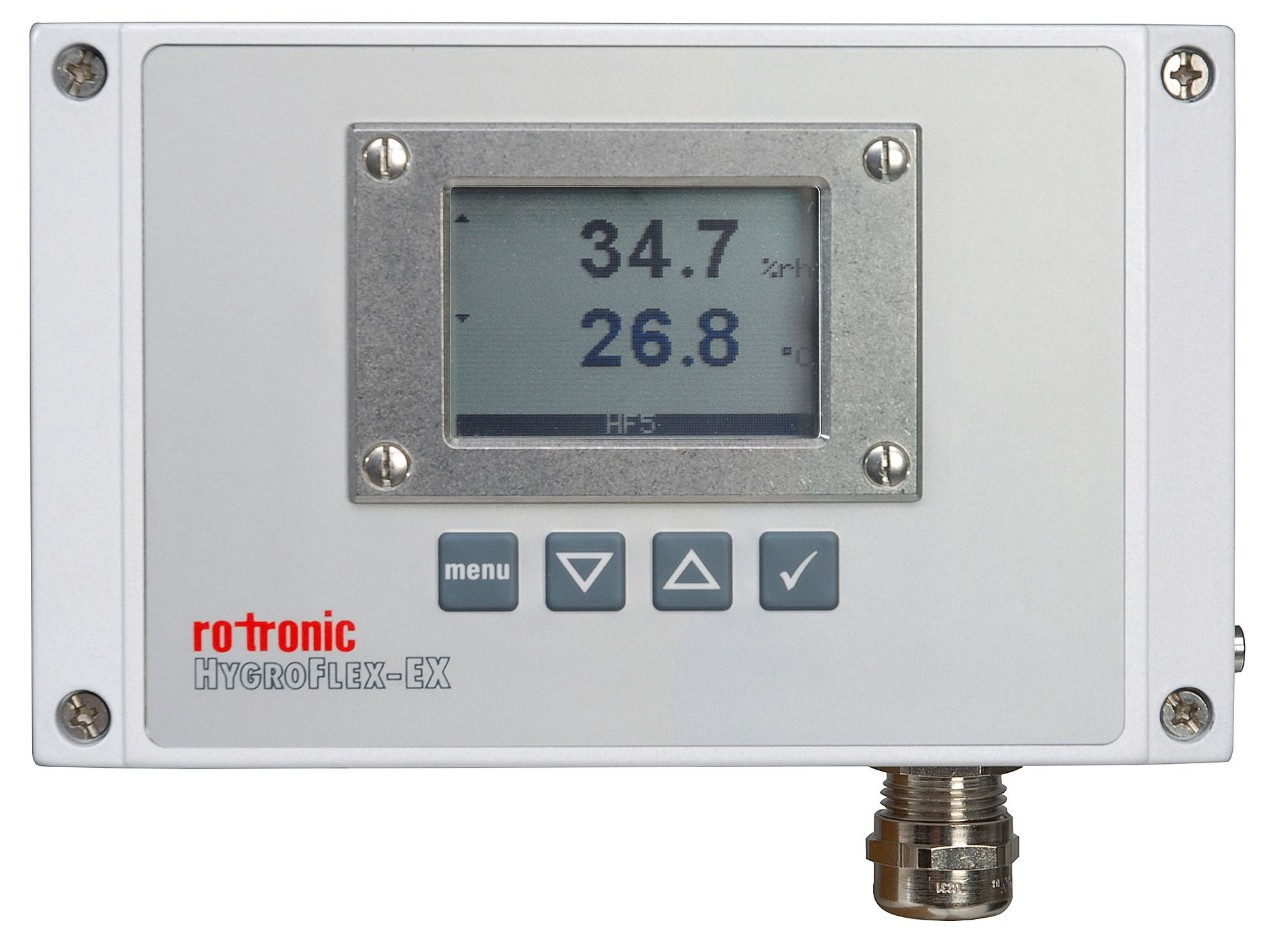

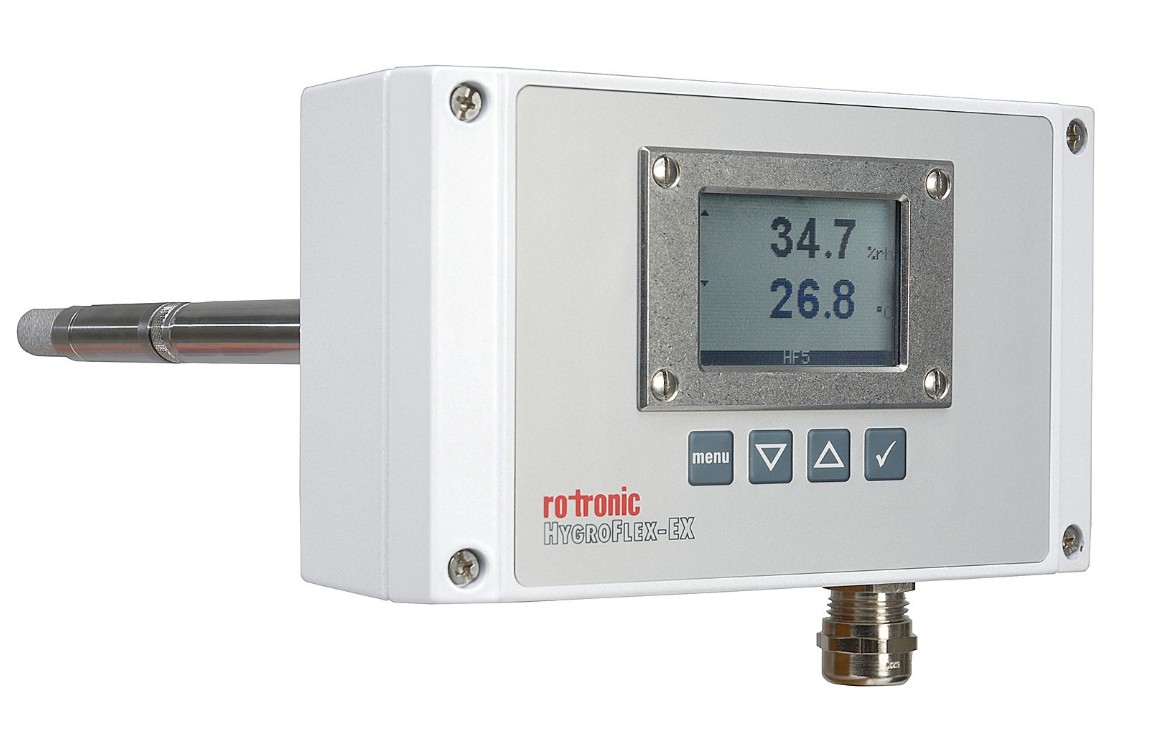

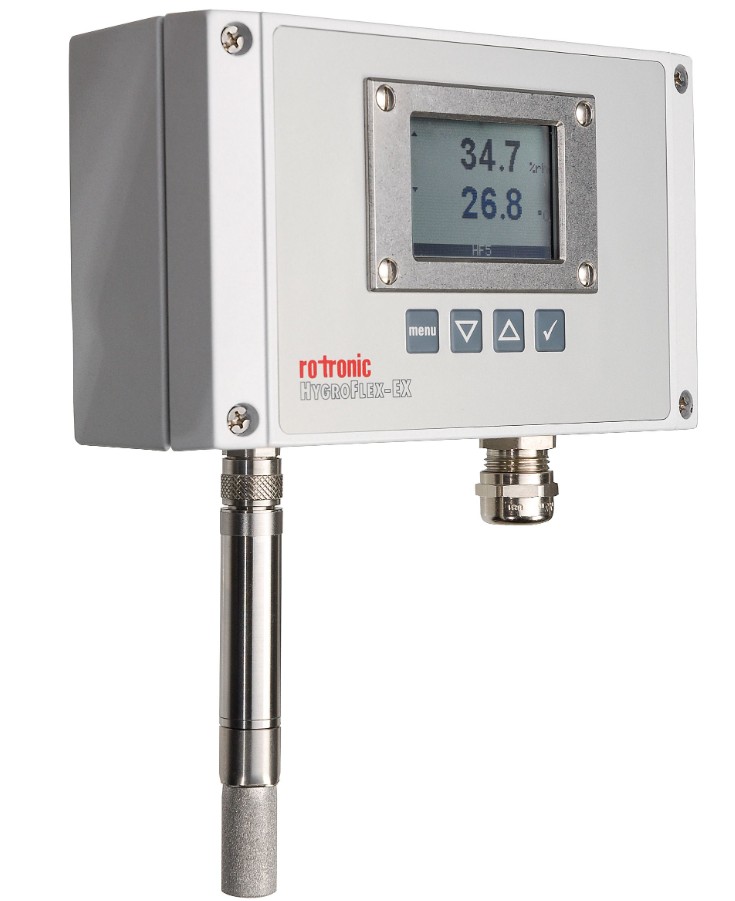

HygroFlex5-EX - HF5-EX - 雙通道變送器

新款HygroFlex5 EX系列是為在有防爆危險的環境中精確測量濕度和溫度的雙通道變送器。本設備符合新的國際標準。

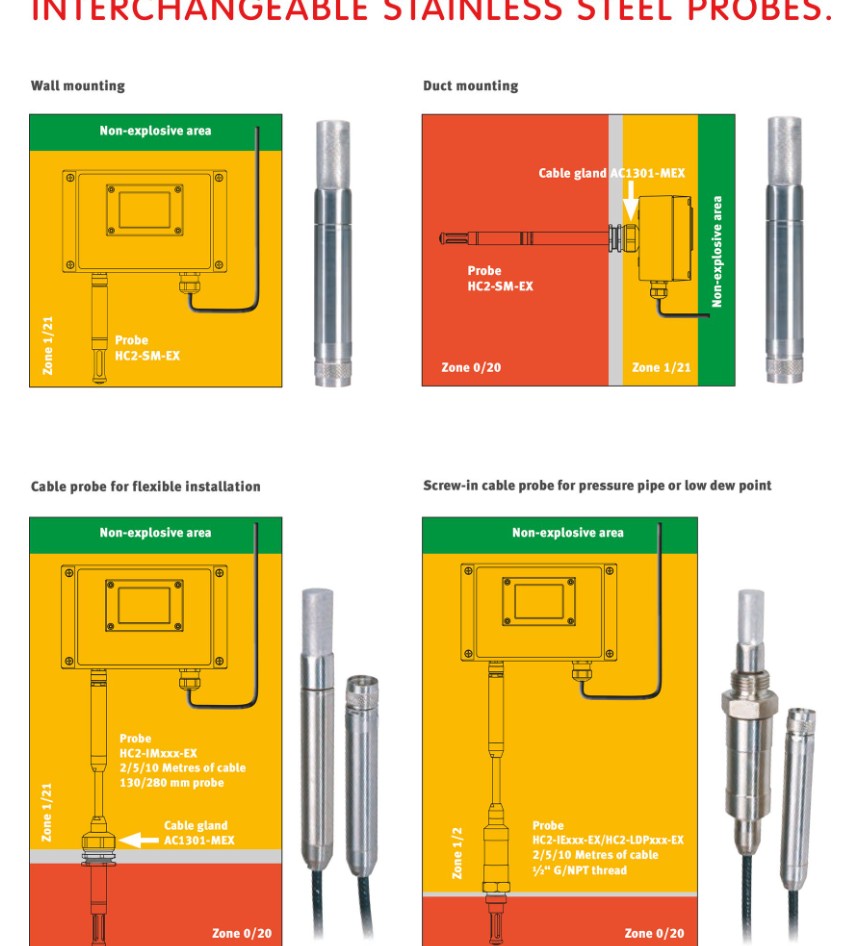

HF5-EX系列是顯示可選，堅固的鋁外殼的變送器。連接的探頭插入不銹鋼管內，經過認證可在0區/ 20運行。變送器本身的通過1 / 21區工作認證。具有電氣隔離智能電路設計允許測量系統是無需本安全電源運行.

特點

? 測量相對濕度和溫度，可選輸出露點儀和其他參數的計算

? 在有防爆危險區域的安全運行

? 沒有本安全電源的要求

? 可互換的不銹鋼探頭

? 堅固的鋁外殼
